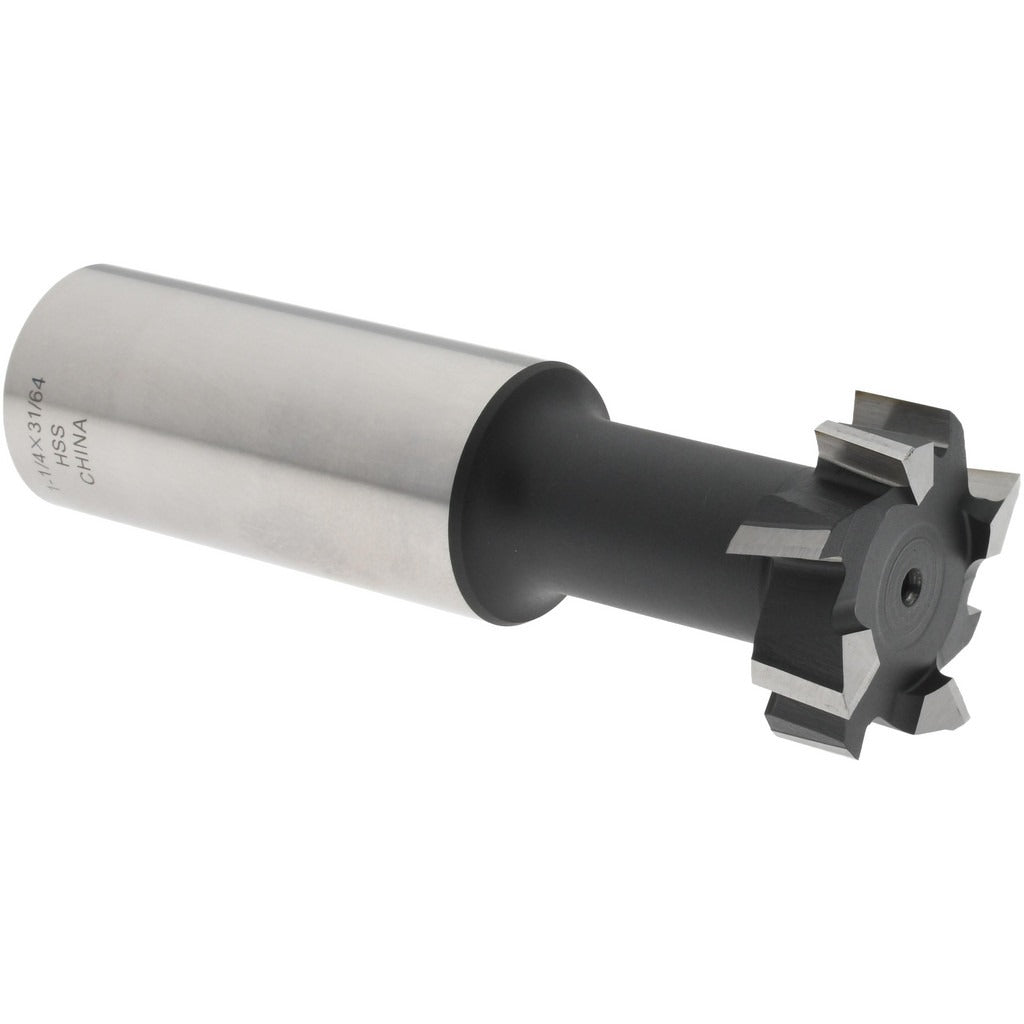

Value Collection C1615040 T-slot Cutter Hss 1-1/4 in

Product Description

The VALUE COLLECTION C1615040 is a high speed steel T-slot cutter designed for milling T-slots in machine tables, fixtures, and workholding components. The cutter measures 1.25 inches in diameter with a 31/64-inch cutting width, sized to produce standard T-slot profiles in a single pass. A staggered tooth configuration reduces cutting load and helps clear chips during the cut. The 1-inch shank diameter provides solid tool holding in standard milling machine collets or end mill holders. This tool is used by machinists and tool and die makers working on manual knee mills, CNC machining centers, and surface grinders requiring T-slot work.

This T-slot cutter is suited for job shops, maintenance and repair operations, and production environments where T-slots must be machined into steel, cast iron, or aluminum workpieces. The staggered tooth geometry makes it appropriate for moderate-to-heavy cuts in ferrous and non-ferrous materials. The 5/8-inch bolt size designation indicates the standard T-slot bolt this cutter is matched to, allowing machinists to select the correct cutter for a given fastener size without trial fitting.

Key Features

• High speed steel construction for general-purpose T-slot milling in a range of materials
• Staggered tooth configuration reduces cutting forces and improves chip evacuation
• 1-inch shank diameter fits standard end mill holders and milling machine spindles
• 31/64-inch cutting width sized for 5/8-inch T-slot bolt hardware
• 3-15/16-inch overall length provides clearance for typical milling setups
• 21/32-inch neck diameter allows the cutter to reach beneath the T-slot relief without interference

Compatibility

Designed as an OEM-style replacement or direct-use T-slot cutter for milling machines accepting a 1-inch straight shank tool and producing T-slots sized for 5/8-inch T-slot bolts.

Installation Notes

T-slot cutters are installed by qualified machinists following standard milling machine setup procedures. Power down and lock out the machine spindle before mounting or removing the cutter. Secure the shank fully in the holder to the recommended engagement depth and confirm tool runout before cutting. Feed rates and spindle speeds should be selected based on workpiece material and machine rigidity — consult a speeds-and-feeds reference for high speed steel tooling.
