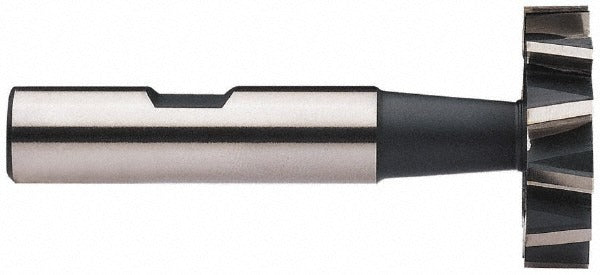

Value Collection C1200707 Woodruff Keyseat Cutter Hss

Product Description

The VALUE COLLECTION C1200707 is a Woodruff keyseat cutter designed for milling semicircular keyseats in shafts and mating components. It features a 0.875 inch cut diameter and a 0.2188 inch (7/32 inch) cut width, making it suitable for cutting ANSI 707 standard Woodruff keyseats. The cutter is manufactured from high speed steel (HSS) with a bright, uncoated finish and a staggered tooth configuration across 10 teeth. The 1/2 inch shank diameter provides secure chuck engagement on standard milling machine spindles. Machinists and tool and die professionals use this cutter for precision keyseat work in both production and maintenance environments.

This cutter is used in vertical milling machine setups where a Woodruff keyseat must be cut to ANSI 707 specifications, also referenced as Old Standard Number 12. Typical applications include shaft preparation for Woodruff keys in mechanical assemblies, gearboxes, and power transmission components. The staggered tooth design promotes smoother cutting action and chip evacuation compared to straight-tooth alternatives, making it suitable for both steel and non-ferrous workpiece materials in general machine shop work.

Key Features

• ANSI 707 standard (Old Standard Number 12) Woodruff keyseat profile
• Staggered tooth configuration with 10 teeth for smoother cutting and improved chip clearance
• High speed steel (HSS) construction for durability across a range of workpiece materials
• Bright, uncoated finish — ready for use as supplied
• 1/2 inch shank diameter for standard milling machine collet or chuck compatibility
• 2.2188 inch overall length for adequate reach in typical keyseat applications

Compatibility

Designed as an ANSI 707 Woodruff keyseat cutter for use on standard vertical milling machines accepting a 1/2 inch shank; conforms to Old Standard Number 12 keyseat dimensions.

Installation Notes

Installation and use of this cutter should be performed by a qualified machinist on a properly maintained milling machine. Ensure the machine spindle is fully stopped and the power is locked out before mounting or removing the cutter from the collet or chuck. Verify shank seating and runout before beginning the cut. Use appropriate cutting speeds and feeds for the workpiece material and consult HSS cutter speed tables for optimal tool life.
