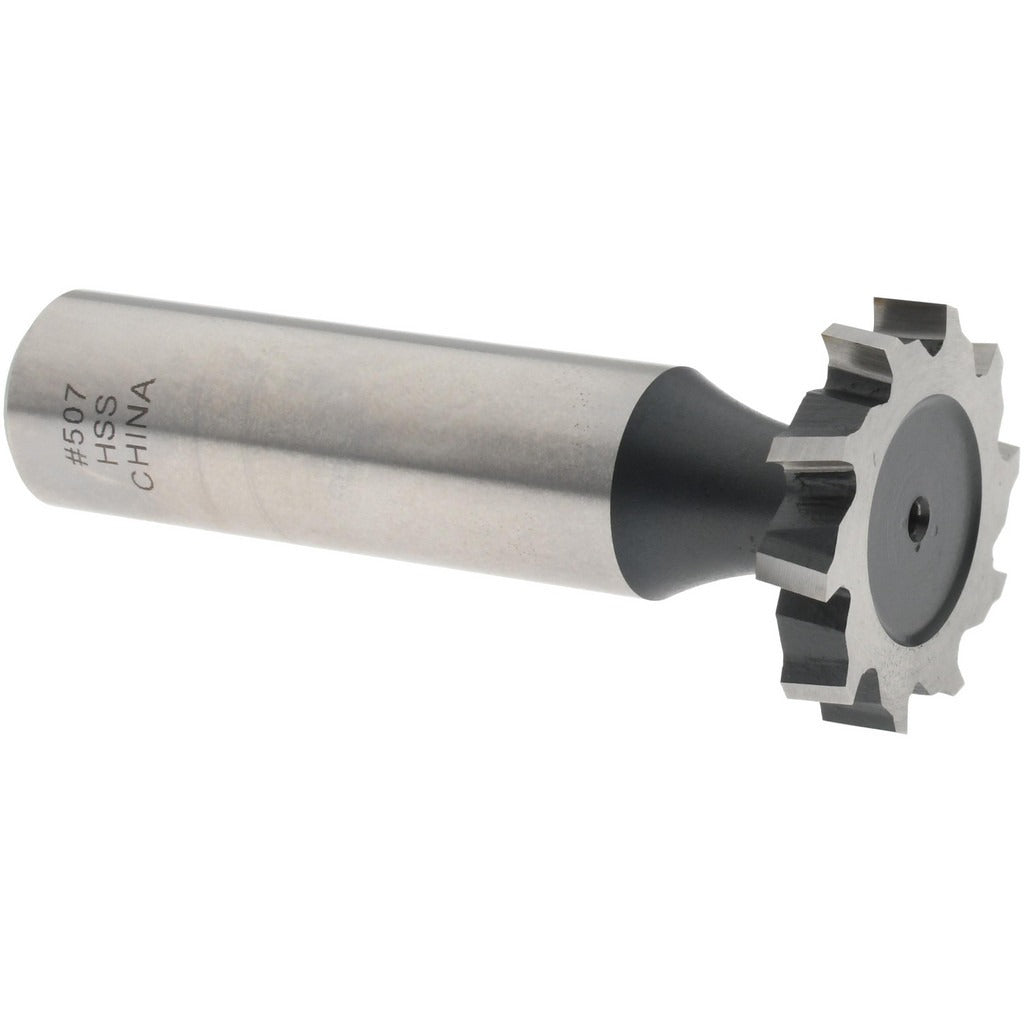

Value Collection C1200507 Woodruff Keyseat Cutter Hss Ansi 507

Product Description

The VALUE COLLECTION C1200507 is a Woodruff keyseat cutter designed for milling Woodruff keyseats in shafts and other machined components. Built from high speed steel (HSS) with a bright, uncoated finish, it features a staggered tooth configuration that reduces chatter and promotes smoother cuts. The cutter measures 0.875 inches in cut diameter and 0.1563 inches in cut width, with a 1/2-inch shank diameter and an overall length of 2.1563 inches. With 10 teeth, this cutter conforms to ANSI Standard 507 (Old Standard Number 10), making it a direct fit for standard Woodruff keyseat applications on manual and CNC milling machines.

This cutter is suited for toolrooms, job shops, and maintenance machining operations where Woodruff keyseats are required in shafts for power transmission components such as gears, pulleys, and sprockets. The staggered tooth design makes it a practical choice for both light production runs and one-off machining tasks in ferrous and non-ferrous materials. It is appropriate for use in residential shop environments as well as light industrial and commercial machine shops.

Key Features

• High speed steel (HSS) construction for durability across a range of workpiece materials
• Staggered tooth configuration reduces cutting forces and minimizes chatter
• 0.875 inches cut diameter and 0.1563 inches cut width for ANSI 507 keyseat profiles
• 10-tooth design promotes chip clearance and smooth surface finish
• Bright, uncoated finish suited for general-purpose milling applications
• Conforms to ANSI Standard 507, Old Standard Number 10

Compatibility

Designed as an ANSI 507 standard Woodruff keyseat cutter compatible with standard milling machine spindles accepting a 1/2-inch shank diameter.

Installation Notes

Installation is performed by qualified machinists on manual or CNC milling machines. Secure the shank firmly in a collet or end mill holder rated for the 1/2-inch shank before beginning any cut. Ensure the machine is fully powered down and the spindle is stopped before mounting or removing the cutter. Follow all shop safety procedures and applicable machine tool standards when setting speeds and feeds for HSS tooling.
