Value Collection C11393 Open End Blind Rivet Size 66 100 Pack

Product Description

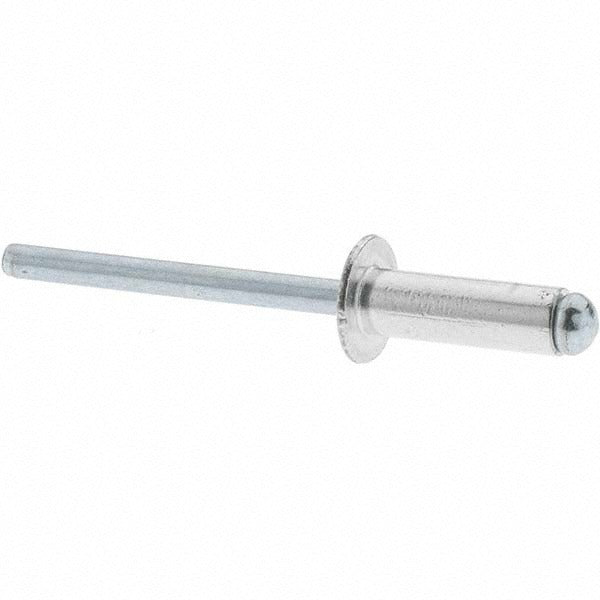

The VALUE COLLECTION C11393 is a size 66 open end blind rivet with a dome head profile, aluminum body, and steel mandrel. The body measures 3/16 inches in diameter and 0.575 inches in length under the head, with a grip range of 0.251 to 0.375 inches. The dome head spans 3/8 inches in diameter and stands 0.060 inches tall. Made from 5056-grade aluminum with a bright finish on the rivet and phosphate finish on the mandrel, this fastener is suited for medium-duty blind fastening applications where only one side of the work surface is accessible. Each package contains 100 rivets. Licensed trade professionals and maintenance technicians install these in metal fabrication, HVAC panel assembly, electrical enclosures, and general sheet metal work.

This rivet is designed for use in applications where the installer has access to only one side of the material. The 3/16-inch body diameter requires a hole diameter between 0.192 and 0.196 inches, which corresponds to a number 11 wire gauge drill bit. The grip range of 0.251 to 0.375 inches accommodates a range of stacked material thicknesses common in light sheet metal and panel assembly. With a tensile strength of 500 pounds and a shear strength of 380 pounds, it handles moderate structural loads in non-critical fastening joints.

Key Features

• 5056-grade aluminum body for corrosion resistance in light-duty structural applications
• Steel mandrel with phosphate finish for consistent setting force and mandrel break
• Open end design allows full mandrel pull-through for standard blind setting
• Dome head profile distributes clamping load across a 3/8-inch head diameter
• Tensile strength of 500 pounds and shear strength of 380 pounds
• Sold in a 100-piece package quantity

Compatibility

Designed as a standard size 66 open end blind rivet for use in applications requiring a 3/16-inch body diameter and a hole size between 0.192 and 0.196 inches, compatible with material stack-ups within a 0.251 to 0.375-inch grip range.

Installation Notes

Installation requires a standard blind rivet tool sized for 3/16-inch rivets. Drill or punch the work material to a hole diameter between 0.192 and 0.196 inches before setting. Ensure total material thickness falls within the 0.251 to 0.375-inch grip range before selecting this rivet for a joint. Discard spent mandrel stubs and inspect the set head for full flare before moving to the next fastener location.
