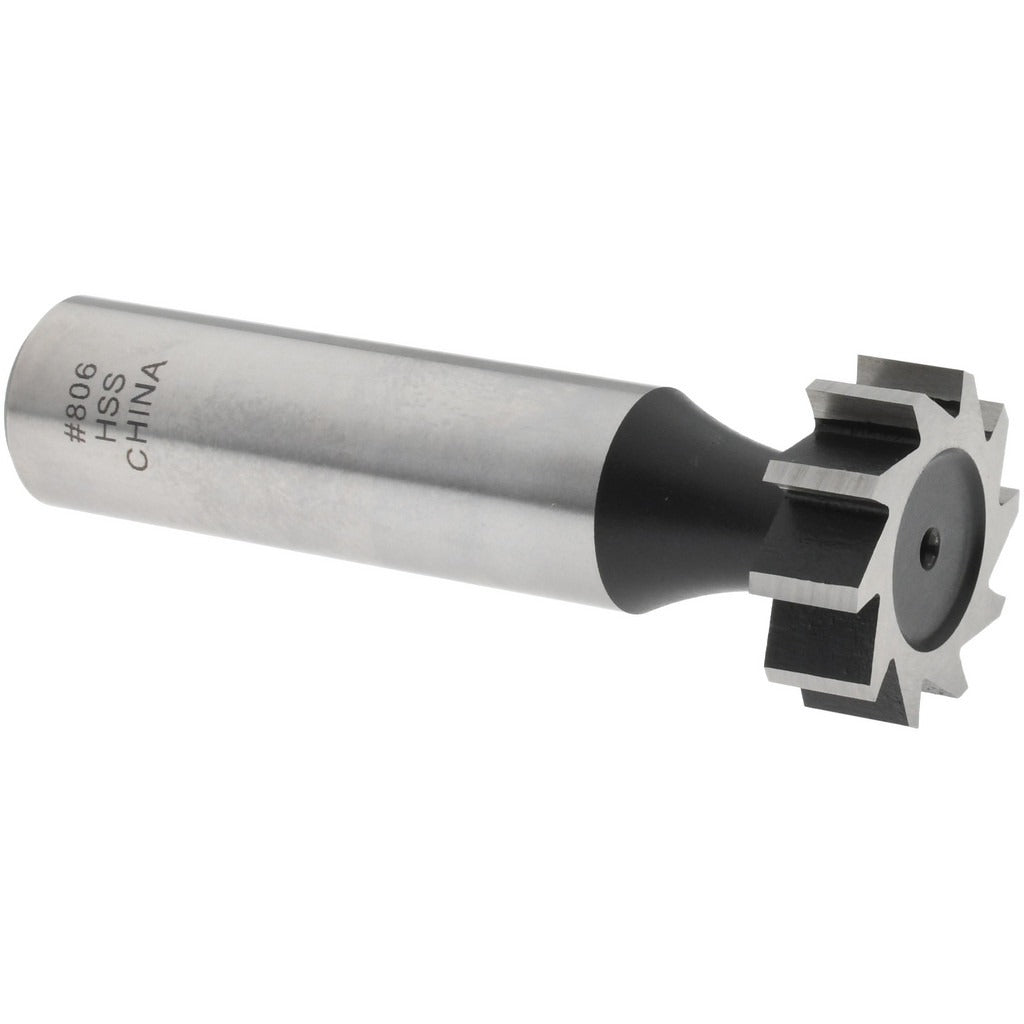

Value Collection C1100806 Woodruff Keyseat Cutter Hss

Product Description

The VALUE COLLECTION C1100806 is a Woodruff keyseat cutter designed for milling keyseat slots in shafts and other machined components. It features a 0.75 inch cut diameter and a 0.25 inch cut width, making it suited for cutting standard Woodruff keyseats in a single pass. The cutter is manufactured from high speed steel (HSS) with a bright, uncoated finish and is configured with 10 straight teeth for clean, consistent cuts. With a 0.5 inch shank diameter and a 2.25 inch overall length, it mounts directly in standard milling machine or lathe collet setups. This tool conforms to ANSI Standard Number 806 and Old Standard Number 91.

This keyseat cutter is used in general machining, tool and die, maintenance, and repair operations where Woodruff keyseats are required on shafts, spindles, and similar cylindrical workpieces. It is appropriate for both job shop and production environments. Machinists and tool room technicians install this cutter when fitting Woodruff keys to secure pulleys, gears, or sprockets to shafts. The straight tooth configuration suits conventional milling operations on manual or CNC knee mills and similar equipment.

Key Features

• 0.75 inch cut diameter and 0.25 inch cut width for standard Woodruff keyseat profiles
• High speed steel construction for durability across a range of mild to medium steels and non-ferrous materials
• Straight tooth configuration for stable, chatter-resistant cuts
• 10 teeth for consistent chip load and surface finish
• Bright, uncoated finish — no additional coating to affect dimensional tolerances
• Conforms to ANSI Standard 806 and Old Standard 91 for interchangeability with standard Woodruff key dimensions

Compatibility

Designed as a standard ANSI 806 Woodruff keyseat cutter compatible with conventional milling machines, knee mills, and machining centers equipped with a 0.5 inch collet or arbor setup.

Installation Notes

Installation is performed by qualified machinists. Secure the cutter firmly in the appropriate collet or arbor before operation and verify runout before cutting. Power down and lock out the machine spindle before mounting or removing the cutter. Do not exceed the recommended feed and speed parameters for HSS tooling in the workpiece material being machined.
