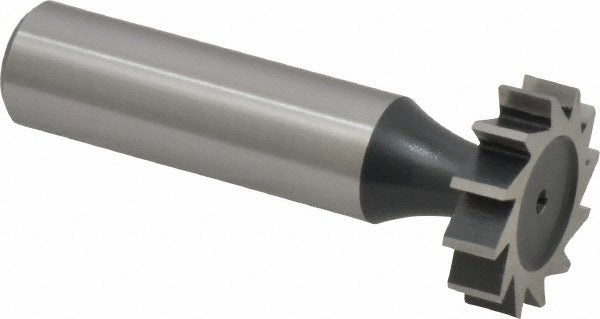

Value Collection C1100707 Woodruff Keyseat Cutter Hss

Product Description

The VALUE COLLECTION C1100707 is a Woodruff keyseat cutter designed for milling Woodruff keyseats in shafts and other machined components. It features a 0.875-inch cut diameter and a 0.2188-inch cut width, with a straight tooth configuration and 10 teeth for clean, consistent cuts. The cutter is manufactured from high speed steel (HSS) with a bright, uncoated finish and mounts via a 1/2-inch shank. Overall length is 2.2188 inches. This tool is used by machinists and tool-and-die professionals in standard milling operations requiring precision keyseat geometry.

This cutter conforms to ANSI standard number 707 and Old Standard Number 12, making it a direct fit for applications where ANSI-specified Woodruff keyseats are required. Typical use includes shaft keyway milling on lathes or milling machines in manufacturing, maintenance, and repair environments. The 1/2-inch shank suits standard milling machine collets and arbors commonly found in job shops and production facilities.

Key Features

• 0.875-inch cut diameter with 0.2188-inch cut width for ANSI 707 keyseat geometry
• Straight tooth configuration with 10 teeth for smooth, repeatable cuts
• High speed steel construction for durability across a range of workpiece materials
• Bright, uncoated finish — suitable for general-purpose machining applications
• 1/2-inch shank diameter for compatibility with standard milling collets and arbors
• Conforms to ANSI 707 and Old Standard Number 12 specifications

Compatibility

Conforms to ANSI standard number 707 and Old Standard Number 12. Designed as a standard Woodruff keyseat cutter for use with milling machines equipped with a 1/2-inch collet or arbor.

Installation Notes

Installation is performed by qualified machinists. Secure the cutter in a properly sized collet or arbor and confirm runout before cutting. Power down and lock out the machine before changing or inspecting tooling. Follow standard machine shop practices and applicable facility safety protocols when operating milling equipment.
