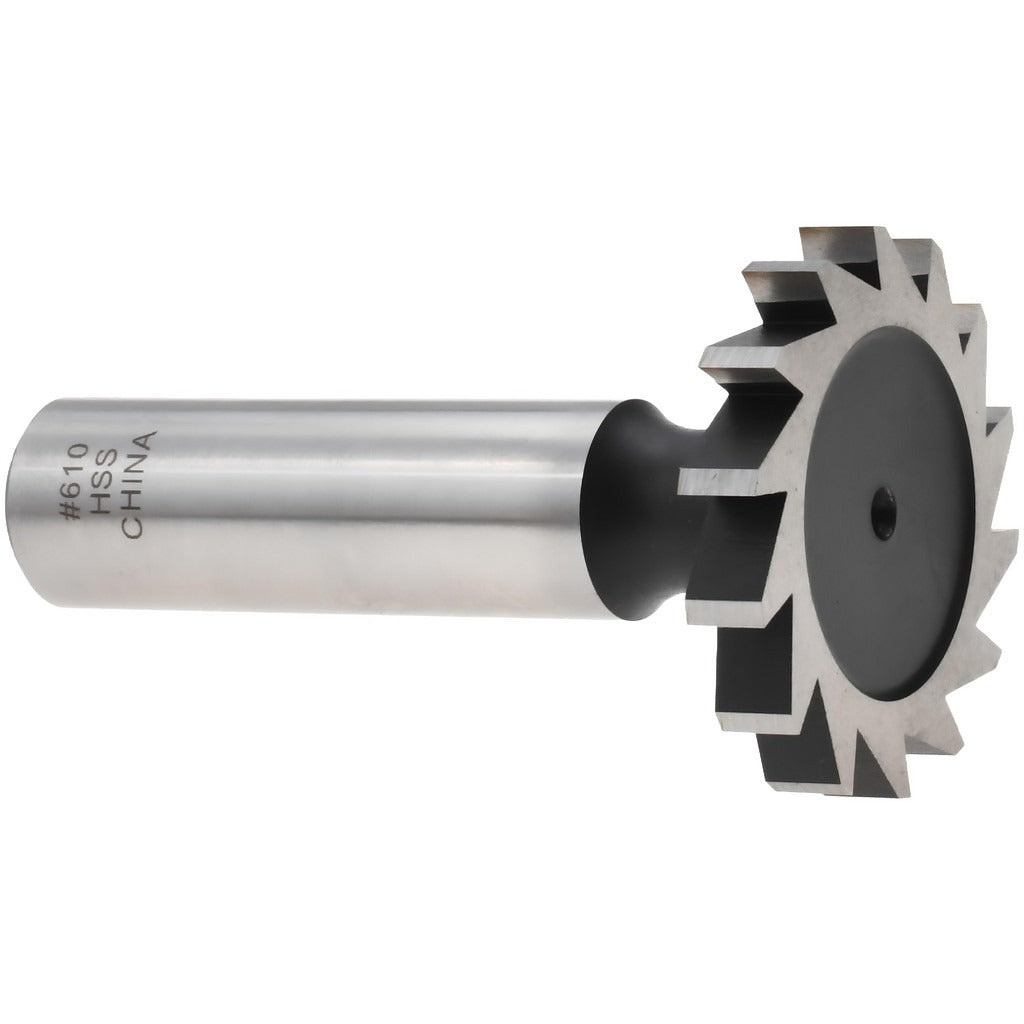

Value Collection C1100610 Woodruff Keyseat Cutter Hss

Product Description

The VALUE COLLECTION C1100610 is a Woodruff keyseat cutter designed for milling Woodruff keyseats in shafts and other precision machined components. It features a 1.25 inch cut diameter and a 0.1875 inch cut width, with a straight tooth configuration that provides clean, consistent cuts. The 1/2 inch shank diameter allows it to mount in standard milling machine collets and arbors. Built from high speed steel (HSS) with a bright uncoated finish, this cutter meets ANSI standard 610 and carries Old Standard Number 19. It is suited for machine shops, maintenance machinists, and tool and die professionals requiring accurate keyway work.

This cutter is used in horizontal and vertical milling operations where Woodruff keyseats must be cut to precise dimensional standards. The 14-tooth straight configuration is appropriate for general-purpose keyseat work in mild steel, aluminum, and similar machinable materials. With an overall length of 2.1875 inches, it fits standard short-reach setups. It is a practical choice for production shops and job shops that need a reliable, code-compliant cutter for shaft keyway applications.

Key Features

• 1.25 inch cut diameter and 0.1875 inch cut width per ANSI standard 610
• High speed steel construction with bright uncoated finish for general-purpose cutting
• 14 straight teeth for consistent, even material removal
• 1/2 inch shank diameter fits standard milling collets and arbors
• 2.1875 inch overall length suits short-reach milling setups
• Meets ANSI 610 and Old Standard Number 19 dimensional requirements

Compatibility

Designed as an ANSI 610 Woodruff keyseat cutter for use in horizontal and vertical milling machines accepting a 1/2 inch shank diameter tool holder or collet.

Installation Notes

Installation should be performed by a qualified machinist. Secure the shank fully in the collet or arbor before starting the machine and verify runout with a dial indicator where precision is critical. Always power down and lock out the milling machine before changing or adjusting cutters. Use appropriate cutting fluid or coolant to extend tool life and maintain dimensional accuracy during the cut.
