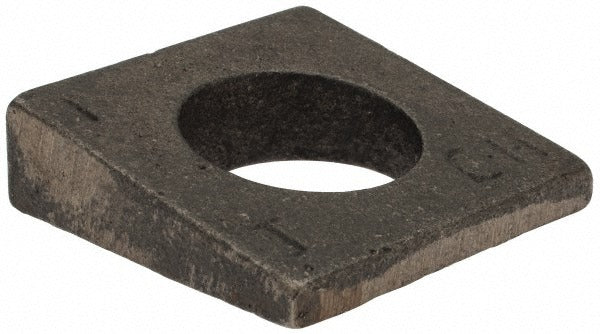

Value Collection BWIM100-010BX Iron Beveled Square Washer

Product Description

The VALUE COLLECTION BWIM100-010BX is an iron beveled square washer designed for use with 1-inch bolts. The beveled profile compensates for angled or uneven bearing surfaces, distributing load evenly across the fastened joint. With a 1-1/16-inch inside diameter and a minimum thickness of 9/16 inch, this washer provides solid material support in structural and mechanical fastening applications. It is suited for use by ironworkers, millwrights, pipefitters, electricians, and general tradespeople who require a reliable load-distributing washer in heavy-duty assembly work.

This beveled square washer is commonly used in structural steel connections, beam and column assemblies, timber framing, and industrial equipment mounting. The square profile and beveled face make it well suited for use with I-beams, channels, and other structural members where the bolt-bearing surface is not perpendicular to the bolt axis. It is used in both commercial and industrial construction settings.

Key Features

• Beveled face compensates for angled bearing surfaces in structural connections
• Square washer profile provides wide load distribution across fastened surfaces
• 1-1/16-inch inside diameter fits standard 1-inch bolts
• 9/16-inch minimum thickness for solid material support under load
• Iron construction suitable for heavy-duty structural and mechanical applications

Compatibility

Designed as an OEM-style replacement or standard fitment washer for use with 1-inch diameter bolts in structural, mechanical, and industrial fastening applications.

Installation Notes

Installation is performed by qualified tradespeople including ironworkers, structural mechanics, and industrial maintenance technicians. Always de-energize or relieve system pressure from the assembly before disassembling fastened joints. Fastener torque should be applied per the applicable structural or mechanical specification for the project. Follow applicable building codes and standards such as AISC or local structural guidelines when using in structural steel applications.
