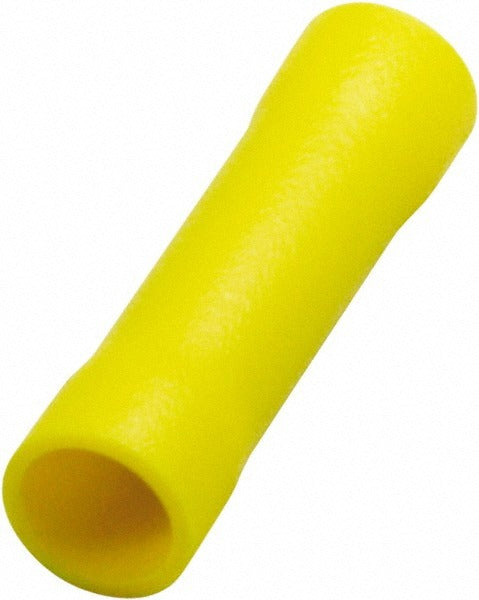

Value Collection BVT22 Butt Splice Terminal 4 Awg

Product Description

The VALUE COLLECTION BVT22 is a fully insulated, crimp-on butt splice terminal designed for making in-line wire connections on 4 AWG conductors. The vinyl insulation sleeve provides electrical protection and strain relief at the splice point. The copper contact ensures reliable conductivity across the joined wires. At 2.067 inches overall length and 0.488 inches in diameter, this terminal is sized for standard butt-splice applications in electrical panels, control wiring, and field repairs. It meets UL Listed and cUL Listed standards and is RoHS compliant. Electricians and electrical technicians install this terminal using a ratcheting or hand crimp tool rated for the terminal type.

This butt splice terminal is used in residential, commercial, and light industrial wiring applications wherever a secure, insulated in-line splice is required on 4 AWG wire. Common install scenarios include panel wiring, motor lead extensions, and equipment repair where a solderless, insulated connection is needed. The terminal accepts two wire entries, one on each end, allowing two conductors to be joined end-to-end. It is also rated for 22.00 square millimeter wire for applications referenced by metric sizing.

Key Features

• Fully insulated vinyl sleeve for electrical protection and wire strain relief
• Crimp-on connection — no soldering required
• Copper contact material for reliable conductivity
• Compatible with 4 AWG (22.00 sq mm) wire
• UL Listed, cUL Listed, and RoHS compliant
• Two wire entries for end-to-end in-line splicing

Compatibility

Designed as an OEM-style replacement and general-use butt splice terminal for 4 AWG crimp-on applications in electrical and control wiring installations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the circuit before making any splice connections. Use a crimp tool rated for the terminal gauge and insulation type to ensure a secure, gas-tight crimp. Do not attempt to solder over a crimped terminal, as this can compromise the connection integrity.
