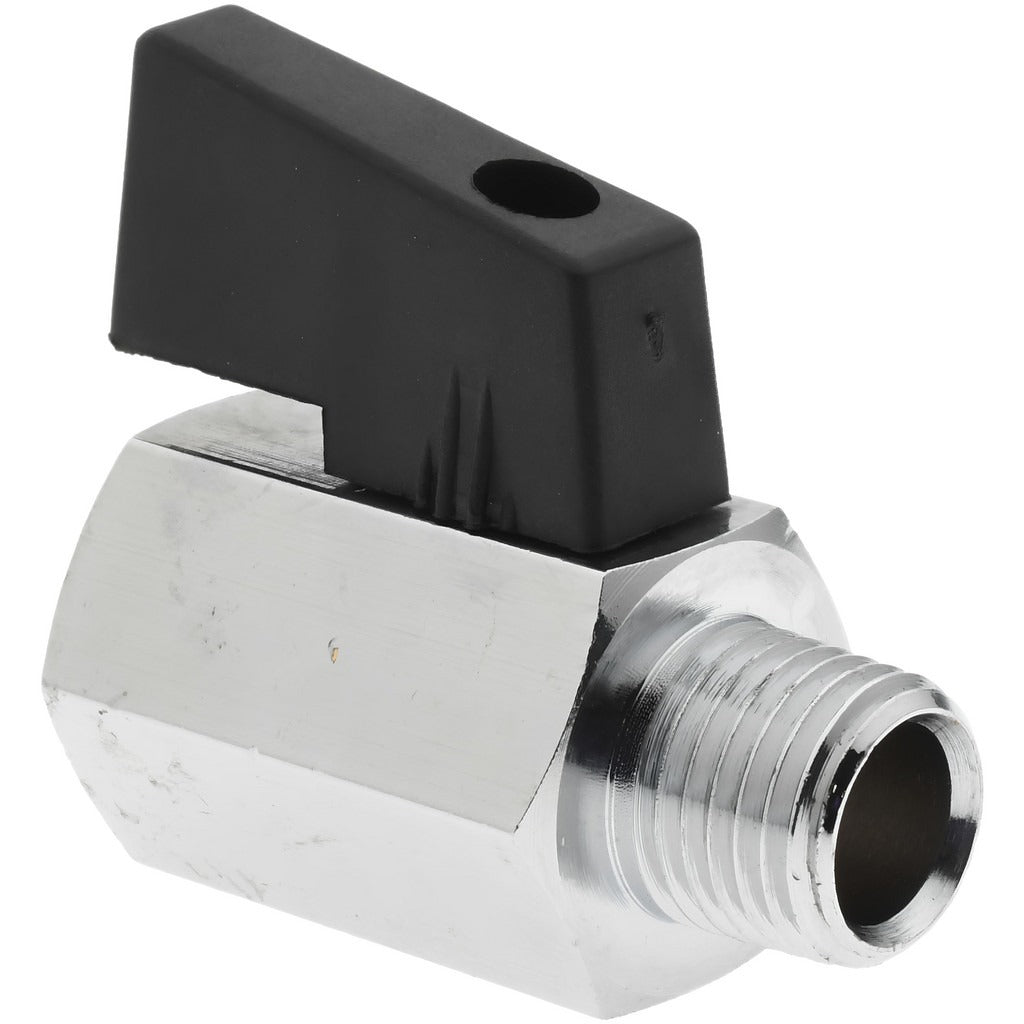

Value Collection BVM25P25-0AD 1/4 Inch Brass Ball Valve

Product Description

The VALUE COLLECTION BVM25P25-0AD is a miniature manual ball valve designed for 1/4-inch pipe connections in small-bore fluid control applications. The valve features a brass body and brass trim, with a reinforced polytetrafluoroethylene (PTFE) seat and seal for reliable shutoff across a range of compatible media. A wedge-style handle provides a positive grip for quarter-turn open and close operation. This valve is suited for plumbing, HVAC, compressed air, and light industrial service lines where a compact, durable inline shutoff is required. Licensed plumbers and HVAC technicians are the typical installers for this fitting class.

This ball valve is appropriate for residential and light commercial applications where a 1/4-inch inline shutoff is needed. Common installations include instrument lines, sample ports, compressed air branch lines, refrigerant service ports, and small-diameter water or chemical lines. The MNPT x FNPT end configuration allows direct inline installation between threaded pipe runs without additional adapters.

Key Features

• Brass body and brass trim for corrosion resistance in water and air service
• Reinforced PTFE seat and seal for low-friction, leak-resistant shutoff
• Wedge handle for positive quarter-turn grip in tight spaces
• MNPT x FNPT end connections for direct inline threaded pipe installation
• Miniature form factor suited for compact or restricted-access installations

Compatibility

Designed as an OEM-style replacement or new-installation shutoff for 1/4-inch threaded pipe systems in plumbing, HVAC, and light industrial applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local codes and the IPC or IFGC as relevant. Depressurize and isolate the line before removing any existing valve or fitting. Apply thread sealant or PTFE tape to male threads before assembly and hand-tighten before using a wrench to avoid over-torquing brass fittings. Verify the valve handle is in the closed position before restoring system pressure.
