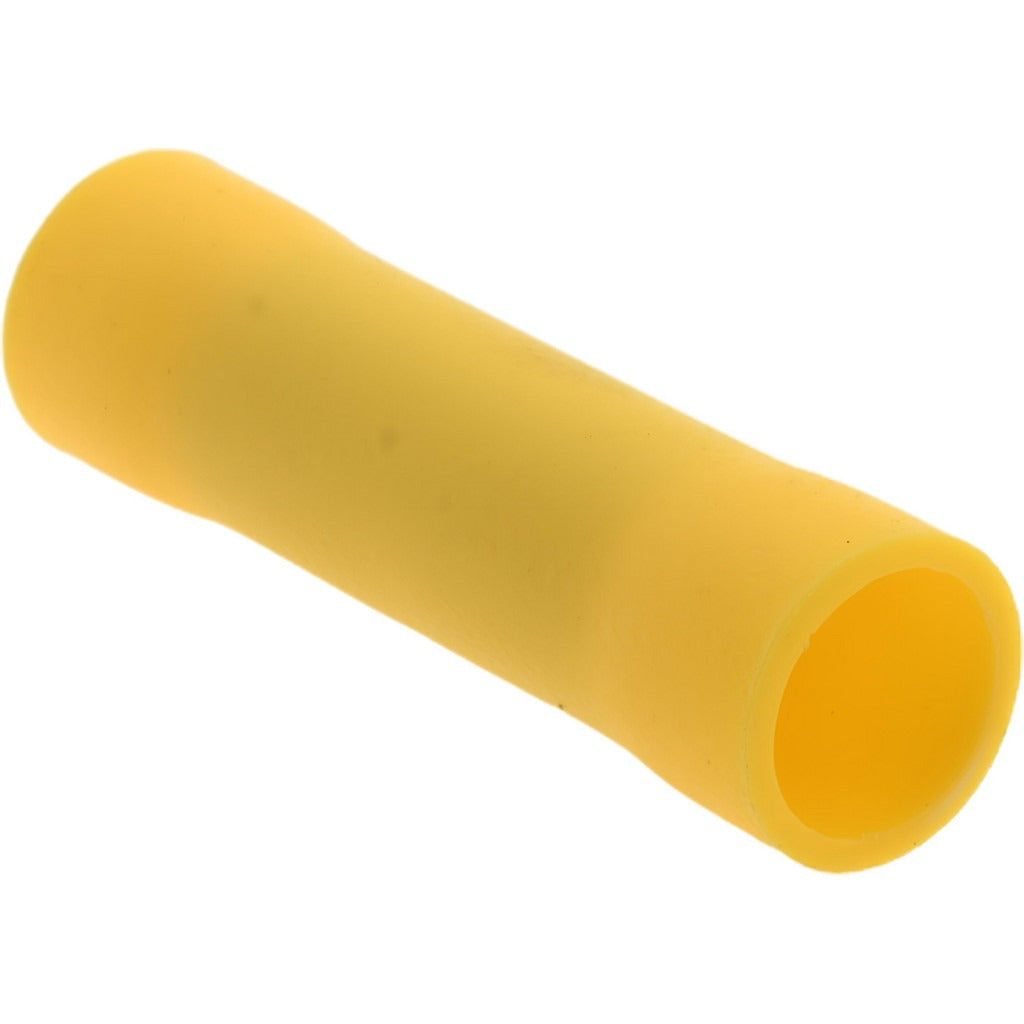

Value Collection BV5 Butt Splice Terminal 4-6 Sq Mm

Product Description

The VALUE COLLECTION BV5 is a fully insulated, crimp-on butt splice terminal designed to join two electrical conductors in a single inline connection. The vinyl insulation provides basic protection against abrasion and moisture in low-voltage wiring applications. The BV5 accepts wire sizes from 4.00 to 6.00 square millimeters and features a copper contact for reliable conductivity. At 1.043 inches overall length and 0.248 inches overall diameter, this is a compact splice suitable for tight wiring spaces. Electricians, HVAC technicians, and panel wiring professionals use this terminal where a fast, tool-crimped inline splice is required without soldering.

The BV5 butt splice terminal is used in residential and light commercial electrical wiring, control panel assembly, HVAC low-voltage wiring runs, and equipment harness repairs. The yellow color coding identifies the 4 to 6 square millimeter wire gauge range, allowing technicians to quickly select the correct terminal during installation. Two wire entries allow one conductor on each end, making it well suited for extending or repairing wire runs in conduit or open wiring assemblies.

Key Features

• Fully insulated vinyl sleeve for abrasion and moisture resistance
• Crimp-on connection — no soldering required
• Copper contact material for reliable conductivity
• Accepts 4.00 to 6.00 sq mm wire on both entries
• Yellow color coding for quick gauge identification
• CSA Certified, cUL Listed, UL Listed, and RoHS Compliant

Compatibility

Designed for use with 4.00 to 6.00 square millimeter conductors in standard crimp-on butt splice applications across residential and light commercial electrical wiring systems.

Installation Notes

Installation is performed by licensed electricians or qualified HVAC technicians using a ratcheting or standard crimping tool rated for insulated terminals. Power must be shut off and circuits verified de-energized before making any splice connection. Follow applicable NEC guidelines for the wiring method and enclosure type in use. Do not use this terminal on wire sizes outside the 4.00 to 6.00 sq mm range, as an improper crimp can result in a high-resistance or failed connection.
