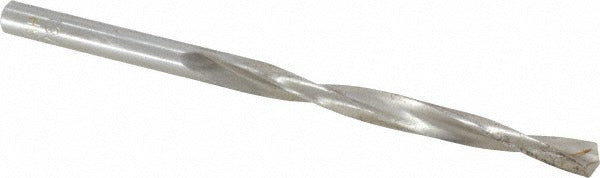

Value Collection BS2700013 Jobber Drill Bit 13/64 in Hss

Product Description

The VALUE COLLECTION BS2700013 is a 13/64 inch high speed steel jobber drill bit designed for general-purpose drilling in aluminum and non-ferrous materials. It features a 130-degree standard point angle and a slow spiral flute configuration, which helps clear chips efficiently when drilling softer metals. The bright, uncoated finish keeps the surface clean of added coatings that could affect tolerances in precision work. With a straight cylindrical shank, it seats securely in standard drill chucks. This bit is right-hand cutting, suited for conventional drilling setups used by machinists, maintenance technicians, and general trade professionals.

This jobber drill bit is intended for drilling aluminum, copper, brass, and other non-ferrous materials in light industrial, maintenance, and general fabrication applications. The slow spiral geometry and web-thinned, tapered web configuration reduce thrust requirements and improve centering at entry. It is a single-piece, individually packaged bit suitable for bench drill presses, hand drills, and CNC drill spindles where a straight-shank bit is required. The ANSI specification designation confirms the bit meets standard dimensional tolerances for consistent fitment across compatible toolholders.

Key Features

• 13/64 inch (0.2031 inch) diameter, within the 0.2000 to 0.2500 inch drill bit size range
• 130-degree standard point angle for reliable entry on non-ferrous workpieces
• Slow spiral flute type promotes efficient chip evacuation in aluminum and soft metals
• Web-thinned, tapered web reduces drilling thrust and improves hole entry accuracy
• Bright, uncoated high speed steel finish — no coating interference with tight-tolerance holes
• Right-hand cutting, straight cylindrical shank, ANSI specification compliant

Compatibility

Designed as a general-purpose replacement or stock drill bit for use in standard straight-shank drill chucks and toolholders. Primary workpiece material rating is aluminum and non-ferrous metals.

Installation Notes

Installation and use should be performed by qualified machinists or trade professionals familiar with rotating cutting tools. Ensure the drill chuck is fully tightened and the workpiece is securely clamped before operation. Always wear appropriate eye protection when drilling. Verify spindle speed is appropriate for the workpiece material and bit diameter before engaging the cut.
