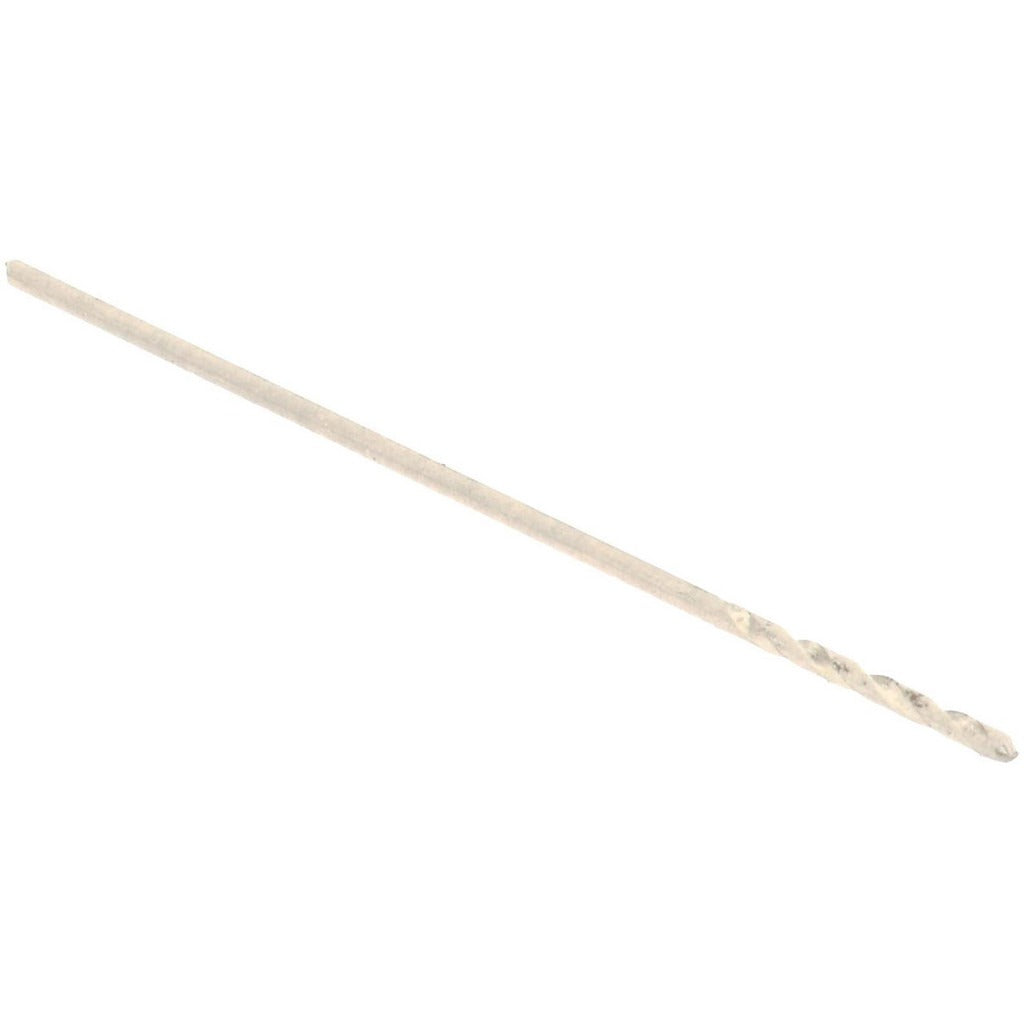

Value Collection BS26N0073 No 73 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION BS26N0073 is a No. 73 wire-size jobber-length drill bit manufactured from high speed steel (HSS) with a bright, uncoated finish. It carries a 140-degree split point angle, which helps center the bit on contact and reduces the need for a center punch on most materials. The fast spiral flute design promotes efficient chip evacuation during drilling. At 1.125 inches overall length with a 0.3125-inch flute length, this is a compact bit suited for precision work in tight spaces. Right-hand cutting direction, straight cylindrical shank, and a tapered web-thinned point round out the construction. Machinists, tool-and-die workers, and general metalworking tradespeople are the primary users.

This bit is sized at 0.0240 inches (No. 73 wire gauge) and is suited for drilling steel, aluminum, non-ferrous metals, and wood. Its general-purpose grade and ANSI specification make it a standard choice for production drilling, fixture work, tapping pre-drill operations, and light fabrication tasks where a small-diameter hole is required. The uncoated bright finish is appropriate for use with cutting fluid on ferrous materials and works dry on non-ferrous and wood substrates.

Key Features

• No. 73 wire size, 0.0240-inch diameter for precision small-hole drilling
• 140-degree point angle with web-thinned, tapered web for self-centering entry
• Fast spiral flute promotes chip clearing in deep or interrupted cuts
• High speed steel construction handles steel, aluminum, non-ferrous metals, and wood
• Straight cylindrical shank fits standard drill chucks and collets
• Bright uncoated finish compatible with cutting fluid applications

Compatibility

Designed as a general-purpose jobber drill bit for use in standard drill chucks and collets accepting a 0.0240-inch straight shank, conforming to ANSI specifications for wire-size drill bits.

Installation Notes

Installation is performed by machinists or metalworking tradespeople using a drill press, CNC machine, or hand-held drill with an appropriate collet or chuck. Secure the shank fully in the chuck before operation and verify the workpiece is clamped. Apply cutting fluid when drilling ferrous metals to extend tool life and improve hole finish. Inspect the point for wear or chipping before each use, as small-diameter bits are susceptible to breakage if side-loaded or run at incorrect feed rates.
