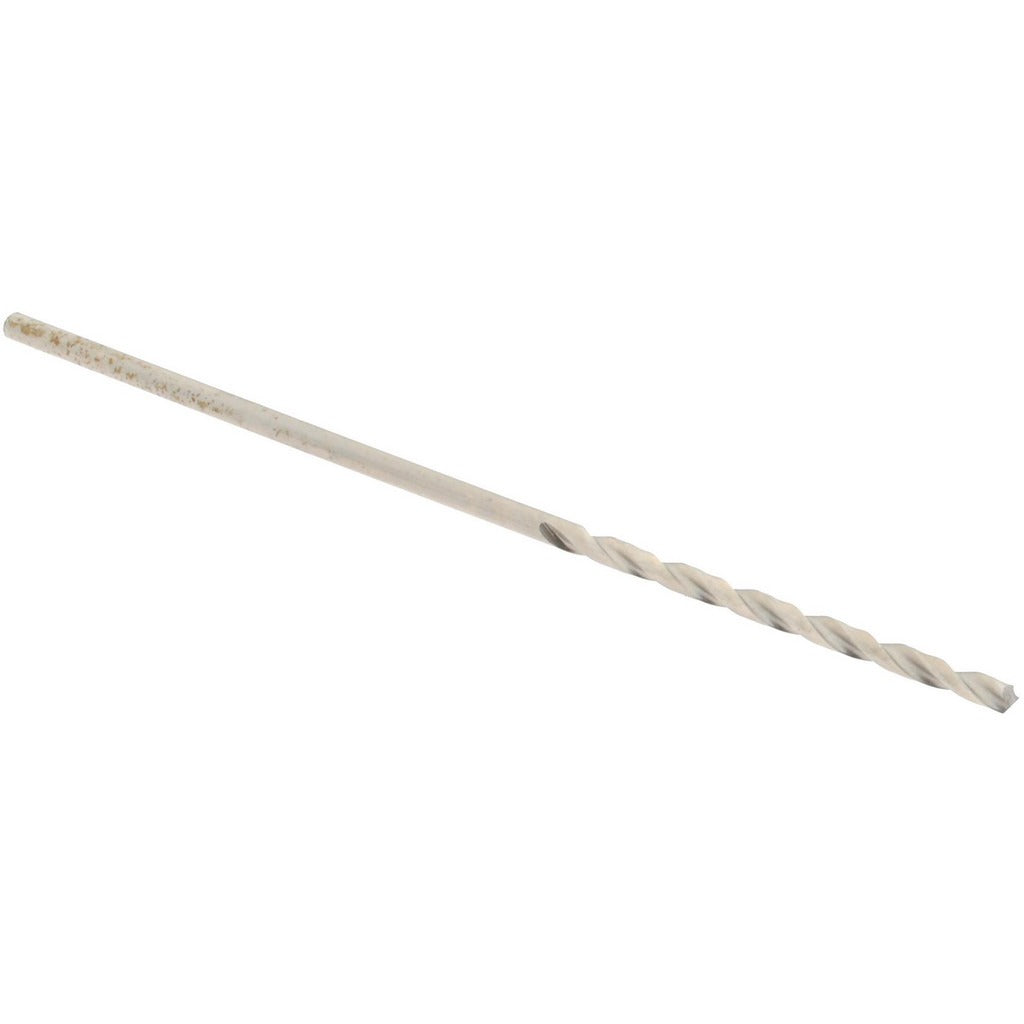

Value Collection BS26N0056 No. 56 Jobber Drill Bit Hss

Product Description

The VALUE COLLECTION BS26N0056 is a No. 56 wire-gauge jobber-length drill bit designed for general-purpose drilling in metal fabrication, machining, and light assembly work. Ground from high-speed steel (HSS) with a bright, uncoated finish, it measures 0.0465 inches in diameter and 1.75 inches overall. The 140-degree split point reduces walking on entry and requires less feed pressure than a standard 118-degree point. A fast spiral flute configuration promotes efficient chip evacuation, making this bit well-suited for softer metals and non-ferrous materials where chip buildup is a common problem. Installation and use require no coolant feed. The two-flute, right-hand cutting geometry follows ANSI standards.

This bit is used in hand drills, drill presses, and CNC drilling operations for small-diameter through-hole and pilot-hole work. Primary workpiece materials include steel, aluminum and other non-ferrous metals, and wood. The straight cylindrical shank seats directly into standard chucks without adapters. Typical applications include tapping preparation, dowel holes, and precision location drilling where a No. 56 wire-gauge size is specified. The web-thinned, tapered web construction keeps cutting forces low at small diameters.

Key Features

• No. 56 wire-gauge diameter: 0.0465 inches for precision small-hole work
• 140-degree split point reduces drill walking and lowers entry feed pressure
• High-speed steel construction handles steel, aluminum, non-ferrous metals, and wood
• Fast spiral flute promotes chip ejection and reduces heat buildup
• Web-thinned, tapered web lowers cutting resistance at small diameters
• Bright uncoated finish; ANSI specification compliant

Compatibility

Designed as a general-purpose jobber drill bit compatible with standard drill chucks and drill presses that accept a straight cylindrical shank sized to 0.0465 inches diameter.

Installation Notes

Secure the shank fully in the chuck before operation and verify concentricity at small diameters to prevent premature breakage. At wire-gauge sizes below 0.050 inches, use low spindle runout and controlled feed rates to avoid snapping the bit. No coolant-through capability is present; apply cutting fluid externally when drilling steel to extend tool life. Replace the bit at first sign of dulling, as re-sharpening bits at this diameter is not practical in most field settings.
