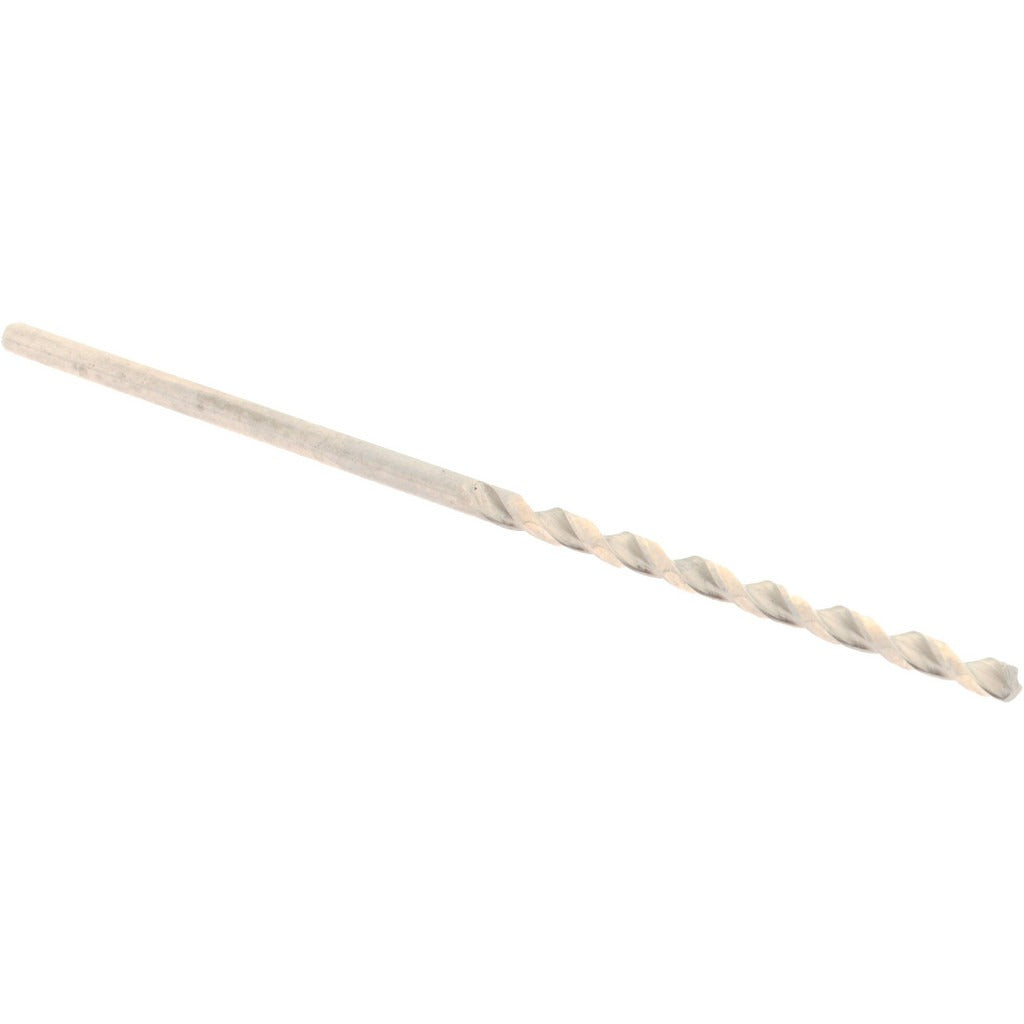

Value Collection BS26N0054 Jobber Drill Bit 54 Hss

Product Description

The VALUE COLLECTION BS26N0054 is a wire gauge size 54 jobber-length drill bit designed for general-purpose drilling in metal fabrication, light manufacturing, and maintenance applications. Manufactured from high speed steel (HSS) with a bright/uncoated finish, the bit measures 0.0550 inches in diameter and 1.875 inches overall length with a 0.875-inch flute length. The 140-degree split point with web thinning reduces walking and requires less feed pressure at the start of a cut, making it well suited for production drilling in steel, aluminum, and non-ferrous materials.

This bit is appropriate for use in hand drills, drill presses, and CNC machining centers where a straight-shank, small-diameter bit is required. The fast spiral flute geometry promotes efficient chip evacuation, reducing heat buildup during drilling. It is commonly used by machinists, maintenance technicians, and fabricators working with tight-tolerance pilot holes, tap drilling, and light through-hole applications in steel, aluminum, wood, and similar non-ferrous workpiece materials.

Key Features

• Wire gauge size 54 (0.0550 inches) straight cylindrical shank for standard chuck compatibility
• 140-degree standard point angle with web-thinned, tapered web for reduced entry force
• Fast spiral flute design with 2 flutes promotes chip clearance in varied materials
• High speed steel construction provides durability in general-purpose drilling applications
• Bright/uncoated finish suits general use in steel, aluminum, and non-ferrous materials
• ANSI specification designation ensures dimensional conformity

Compatibility

Designed as a general-purpose jobber drill bit compatible with any standard drill chuck or collet accepting a 0.0550-inch straight shank, including hand drills, drill presses, and CNC spindles used in metalworking and fabrication.

Installation Notes

Installation and use should be performed by machinists or experienced trades personnel familiar with small-diameter drill bit handling. Secure the straight shank firmly in a compatible chuck before operation to prevent slippage. Small-diameter HSS bits are susceptible to breakage under side loading or excessive feed pressure — use consistent, moderate feed rates. Coolant or cutting fluid is recommended when drilling steel to extend bit life, even though this bit does not feature through-coolant capability.
