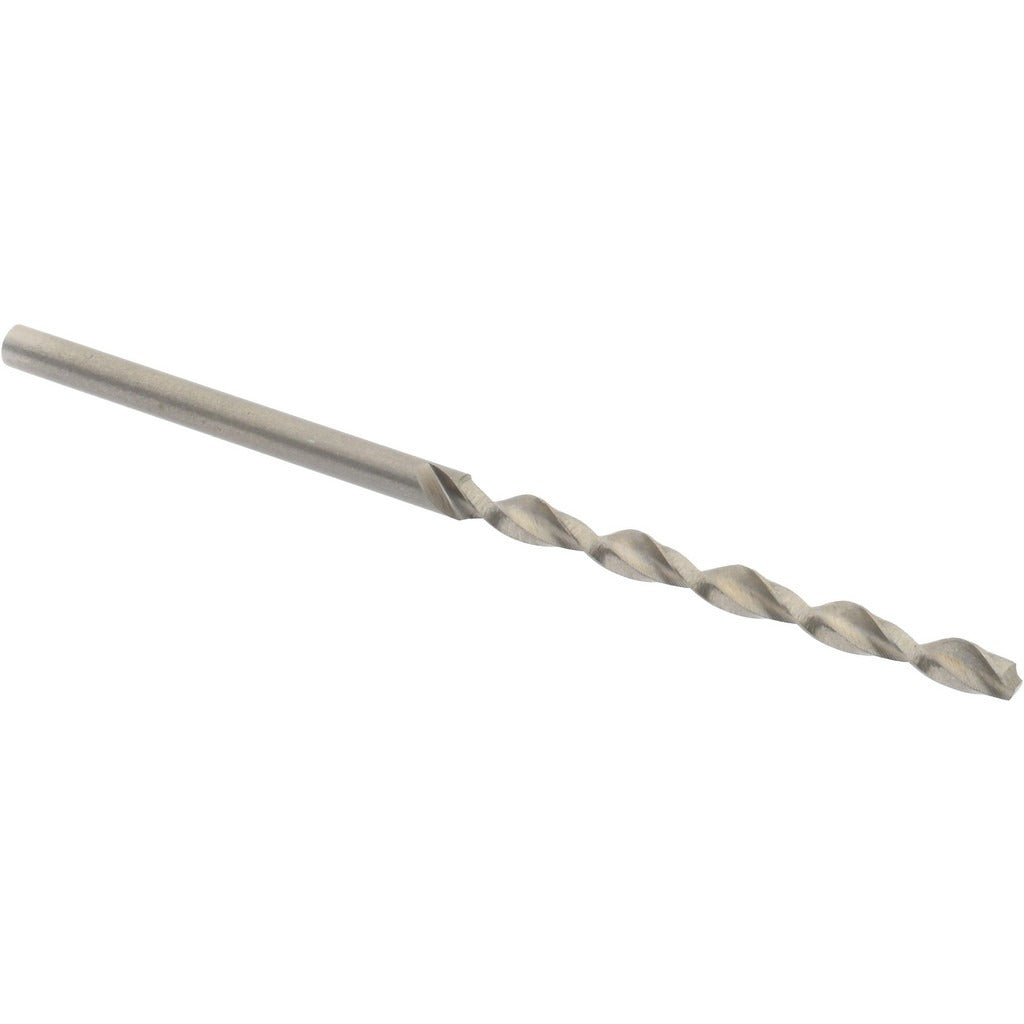

Value Collection BS26N0042 No. 42 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION BS26N0042 is a wire gauge No. 42 jobber-length drill bit ground from high speed steel (HSS) with a bright, uncoated finish. The 140-degree split-point geometry reduces walking on entry and lowers thrust force, making it well suited for production drilling in steel, aluminum, and other non-ferrous materials as well as wood. The bit measures 2.25 inches overall with a 1.25-inch fast-spiral flute and a straight cylindrical shank at 0.0935 inches in diameter. Web thinning with a tapered web configuration improves chip evacuation and reduces heat buildup at the cutting edge during repeated use.

This bit is sized for general-purpose drilling in light fabrication, HVAC sheet metal, electrical enclosure work, plumbing bracket installation, and similar trade applications where a No. 42 wire gauge hole is required. The fast spiral flute clears chips efficiently in both through-hole and blind-hole drilling. Right-hand cutting direction is standard for use in conventional drill presses, cordless drivers, and hand drills. No coolant-through capability is present, so external lubrication is recommended when drilling ferrous metals at sustained feed rates.

Key Features

• Wire gauge No. 42 size — 0.0935-inch decimal diameter for precise small-hole work
• 140-degree point angle reduces thrust and minimizes bit walking on flat surfaces
• Fast spiral flute promotes aggressive chip evacuation in metals and wood
• Web-thinned, tapered web construction lowers cutting resistance and heat
• Bright uncoated HSS construction — easy to inspect for wear and re-sharpen
• ANSI specification compliant for consistent dimensional tolerances

Compatibility

Designed as a general-purpose jobber drill bit suitable for use in standard straight-shank drill chucks. Compatible with steel, aluminum, non-ferrous metals, and wood workpieces per manufacturer specification.

Installation Notes

Install the straight shank fully and evenly into the chuck before tightening to prevent runout. Secure the workpiece before drilling to prevent movement. Apply cutting fluid or light oil when drilling ferrous metals to extend bit life and maintain dimensional accuracy. Inspect the cutting edges for wear after extended use — a dull 140-degree point on HSS can be touch-dressed on a bench grinder by an experienced operator.
