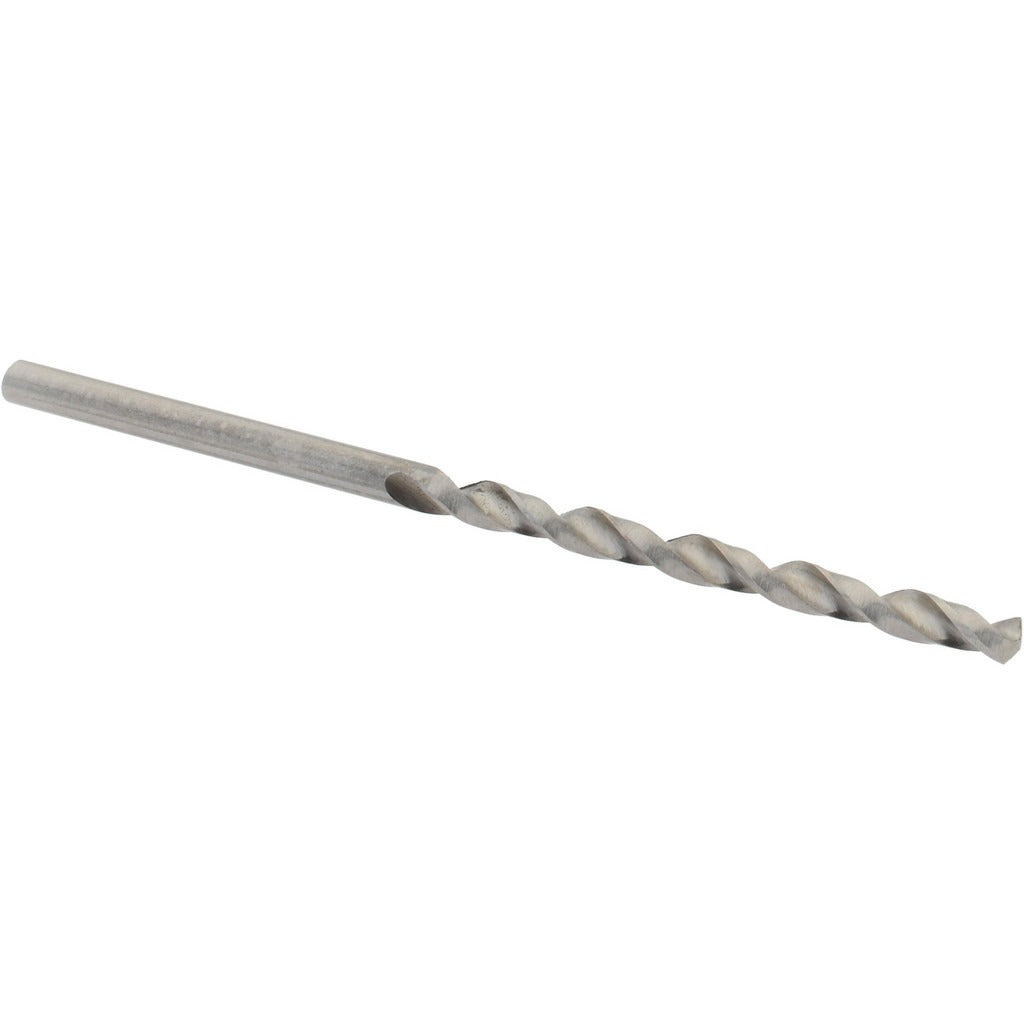

Value Collection BS26N0040 Jobber Drill Bit 40 Wire Hss

Product Description

The VALUE COLLECTION BS26N0040 is a wire gauge size 40 jobber-length drill bit designed for general-purpose drilling in production and maintenance trade applications. Built from high speed steel (HSS) with a bright uncoated finish, this bit features a 140-degree split point angle and a fast spiral flute configuration for efficient chip evacuation. The straight cylindrical shank measures 0.0980 inches in diameter, and the overall length is 2.375 inches with a flute length of 1.375 inches. Right-hand cutting direction and a web-thinned, tapered web construction reduce walking and entry force on contact.

This bit is suited for drilling steel, aluminum and non-ferrous metals, and wood across a range of trade and light industrial settings. The 140-degree point geometry is appropriate for harder materials where a more aggressive point angle is needed to control entry and reduce thrust. It is commonly used by machinists, maintenance technicians, pipefitters, and sheet metal workers who require consistent hole quality in wire gauge drill sizes. The ANSI specification designation confirms dimensional conformance to standard jobber-length geometry.

Key Features

• Wire gauge size 40 (0.0980 inch decimal) for precision small-diameter drilling
• 140-degree point angle reduces thrust and suits steel and non-ferrous applications
• Fast spiral flute design promotes rapid chip removal and reduced heat buildup
• Web-thinned tapered web lowers entry resistance and minimizes bit walking
• Bright uncoated HSS construction for general-purpose use across multiple materials
• ANSI-conforming jobber-length dimensions for compatibility with standard chucks and tool holders

Compatibility

Designed as a general-purpose jobber-length drill bit for use with standard three-jaw chucks and drill presses accepting a 0.0980-inch straight cylindrical shank. Suitable for hand drills, drill presses, and CNC equipment configured for wire gauge tooling in the 0.0500 to 0.1000 inch range.

Installation Notes

This bit is installed and removed by a licensed machinist, maintenance technician, or qualified tradesperson using a keyed or keyless chuck appropriate for the shank diameter. Secure the shank fully in the chuck jaws before operating. Ensure the workpiece is clamped or fixtured to prevent rotation during drilling. Use cutting fluid appropriate for the workpiece material when drilling steel to extend bit life and maintain hole quality.
