Value Collection BS2600017 Jobber Drill 17/64 in Hss

Product Description

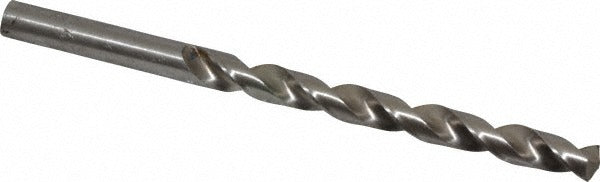

The VALUE COLLECTION BS2600017 is a high speed steel jobber-length drill bit sized at 17/64 inch (0.2656 inch decimal) with a 140-degree split-point angle. The bit features a fast spiral flute geometry and a web-thinned, tapered web configuration that reduces thrust and helps center the point on entry. The bright, uncoated finish is standard for general-purpose HSS tooling. With an overall length of 4.125 inches and a flute length of 2.875 inches, this is a conventional jobber-length format intended for use in drill presses, hand drills, and CNC drilling operations by machinists, maintenance technicians, and field tradespeople.

This drill bit is suited for drilling steel, aluminum, other non-ferrous metals, and wood in both shop and field environments. The straight cylindrical shank fits standard three-jaw chucks across a wide range of portable drills and benchtop equipment. The right-hand cutting direction is compatible with all standard drill press and hand drill spindles. Its general-purpose grade makes it appropriate for repetitive production drilling as well as occasional maintenance and repair tasks.

Key Features

• 17/64 inch diameter (0.2656 inch decimal) for precise hole sizing
• 140-degree point angle with web-thinned, tapered web for reduced entry thrust
• Fast spiral flute geometry improves chip evacuation in steel and non-ferrous materials
• High speed steel construction provides hardness and edge retention at elevated temperatures
• Bright, uncoated finish — suitable for general-purpose drilling across multiple workpiece materials
• Straight cylindrical shank fits standard three-jaw chucks without adapters

Compatibility

Designed as a general-purpose jobber drill bit compatible with any standard three-jaw chuck accepting a straight cylindrical shank, including drill presses, cordless drills, corded hand drills, and CNC drilling equipment. Sized within the 0.2500 to 0.3000 inch decimal inch drill bit range per ANSI specification.

Installation Notes

Installation should be performed by a qualified machinist or technician familiar with rotating cutting tools. Secure the shank fully in the chuck and confirm the bit runs true before starting the cut. Always power down and de-energize the drill press or equipment before changing bits. Follow applicable shop safety standards and wear appropriate eye protection when drilling.
