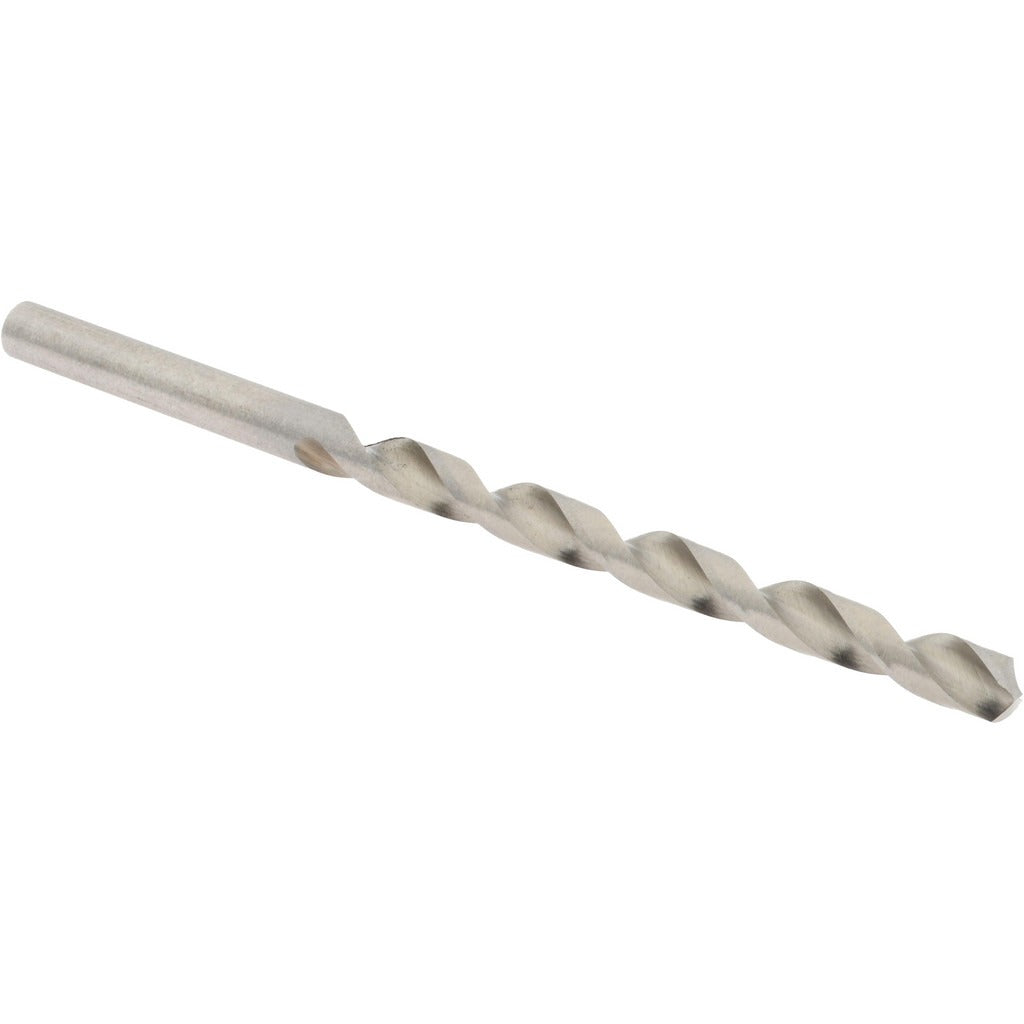

Value Collection BS2600012 Jobber Drill Bit 3/16 in Hss

Product Description

The VALUE COLLECTION BS2600012 is a 3/16 inch diameter jobber-length drill bit machined from high speed steel (HSS) with a bright, uncoated finish. It features a 140-degree split point for reduced walking and faster penetration on entry, a fast spiral flute for efficient chip evacuation, and a web-thinned tapered web for lower thrust requirements during drilling. At 3.5 inches overall length with a 2.3125-inch flute length, this bit fits standard three-jaw drill chucks and is suited for general-purpose hole-making in production and maintenance environments. Machinists, maintenance technicians, and metalworking trades are the primary installers.

This jobber drill is rated for use in steel, aluminum, non-ferrous metals, and wood, making it a versatile choice across fabrication shops, HVAC ductwork prep, plumbing rough-in, electrical panel work, and general mechanical maintenance. The straight cylindrical shank accepts standard drill chucks without adapters. The right-hand cutting direction is compatible with conventional forward-rotation drilling equipment. It conforms to ANSI specification standards for jobber-length drill geometry.

Key Features

• 3/16 inch (0.1875 inch) diameter, ANSI jobber-length geometry
• 140-degree point angle with web-thinned tapered web reduces entry thrust
• Fast spiral flute design promotes rapid chip evacuation in metals and wood
• High speed steel construction provides heat resistance for dry drilling applications
• Bright uncoated finish — suitable for general-purpose use across multiple workpiece materials
• Right-hand cut, straight cylindrical shank fits standard drill chucks without modification

Compatibility

Designed as a general-purpose jobber drill compatible with any standard drill chuck accepting a straight cylindrical shank in the 3/16 inch diameter range. Rated for steel, aluminum and non-ferrous metals, and wood workpieces per manufacturer specification.

Installation Notes

Install in a drill press, hand drill, or CNC drilling setup using a properly sized chuck rated for straight-shank bits. Secure the workpiece before drilling to prevent rotation. Apply appropriate cutting fluid when drilling ferrous metals to extend tool life and reduce heat buildup. Inspect the cutting edges before each use and replace the bit if chipping or dulling is observed, as a worn drill generates excess heat and produces out-of-tolerance holes.
