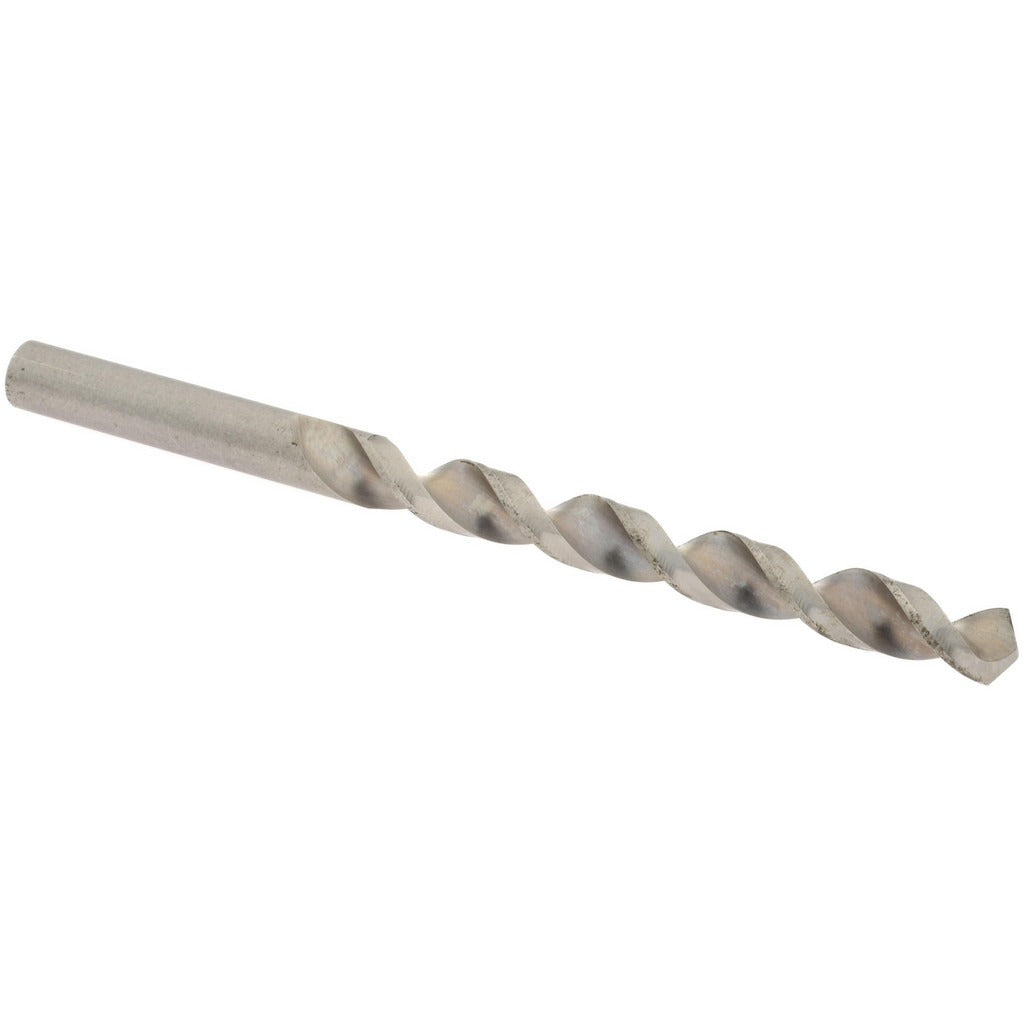

Value Collection BS260000M Jobber Drill Bit Letter M Hss

Product Description

The VALUE COLLECTION BS260000M is a letter-M jobber-length drill bit designed for general-purpose drilling in metal, aluminum, non-ferrous materials, and wood. Built from high-speed steel (HSS) with a bright, uncoated finish, it features a 140-degree split point that reduces walking on entry and cuts through workpieces with less feed pressure. The fast spiral flute geometry promotes efficient chip evacuation, helping maintain cutting speed in production and service environments. At 4.375 inches overall length with a 3.0625-inch flute, this is a standard jobber-length tool suitable for drill presses, hand drills, and CNC spindles running at appropriate HSS-rated speeds.

This bit is suited for residential and commercial service work, light manufacturing, and maintenance trades. Its 0.2950-inch diameter corresponds to letter size M per ANSI standards, making it a common selection when drilling to a specific clearance or tap drill specification. Typical applications include drilling pilot holes in steel plate, sheet metal work, aluminum extrusions, and wood framing or finish components. The straight cylindrical shank seats directly in standard three-jaw chucks without requiring a collet adapter.

Key Features

• Letter M size — 0.2950 inch diameter per ANSI specification
• 140-degree point angle for reduced walking and lower thrust requirement
• Fast spiral flute design promotes aggressive chip clearance
• Web-thinned, tapered web construction reduces cutting resistance at center
• High-speed steel construction rated for steel, aluminum, non-ferrous metals, and wood
• Bright uncoated finish — no coating to chip or delaminate during regrinding

Compatibility

Designed as a general-purpose ANSI-specification jobber drill bit compatible with any standard three-jaw chuck or drill press accepting a 0.2950-inch straight cylindrical shank. Suitable for use in steel, aluminum, non-ferrous alloys, and wood as specified by the manufacturer.

Installation Notes

Installation and use should be performed by machinists, maintenance technicians, or qualified tradespeople familiar with drilling operations. Secure the shank fully in the chuck and verify concentricity before running at speed. Always set spindle RPM appropriate for HSS tooling and the workpiece material — HSS bits require lower surface speeds than carbide. Wear appropriate eye protection and secure the workpiece before initiating the cut.
