Value Collection BNYTF5 Butt Splice Terminal 4-6 Sq Mm

Product Description

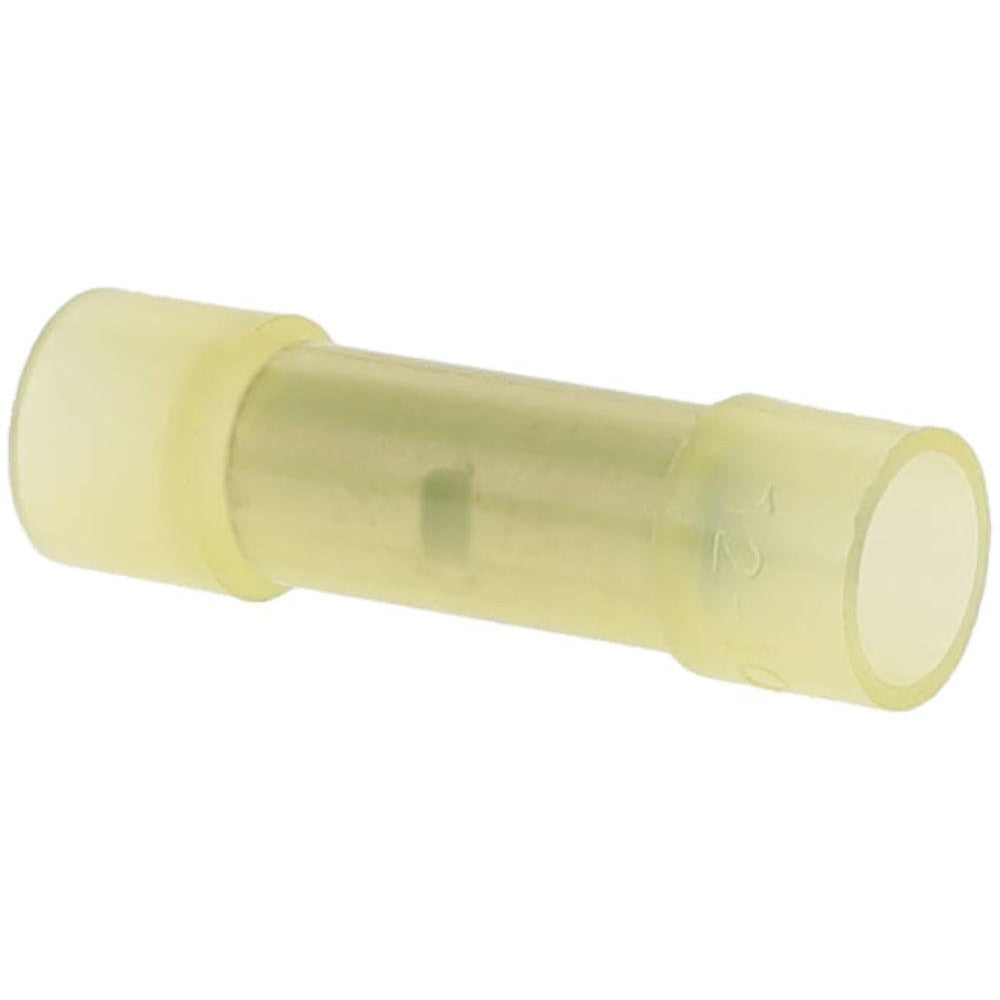

The VALUE COLLECTION BNYTF5 is a fully insulated, crimp-on butt splice terminal designed to join two conductors end-to-end in a secure, low-profile connection. The nylon insulation sleeve provides electrical isolation and mechanical protection at the crimp joint. Built for 4.00 to 6.00 square mm wire, this terminal accepts two wire entries and is color-coded yellow for quick gauge identification in the field. Overall length is 1.11 inches and overall diameter is 0.248 inches. Electricians and maintenance technicians use these terminals when terminating control wiring, panel wiring, or field device connections where a clean, insulated splice is required.

The BNYTF5 is suited for residential, commercial, and light industrial electrical work. It performs well in control panels, junction boxes, and equipment enclosures where wire gauge falls in the 4.00 to 6.00 square mm range. The yellow color coding aligns with standard wire gauge identification conventions, allowing technicians to sort and verify terminations at a glance during installation or service. These terminals ship in minimum order quantities of 50 units per order.

Key Features

• Fully insulated nylon sleeve for electrical isolation at the splice point
• Crimp-on connection type for fast, tooled termination without soldering
• Compatible wire size range: 4.00 to 6.00 square mm
• Yellow color coding for quick wire gauge identification
• Copper contact material for reliable conductivity
• cUL Listed, UL Listed, and RoHS Compliant

Compatibility

Designed as an OEM-style crimp butt splice terminal for use with 4.00 to 6.00 square mm conductors in standard electrical termination applications.

Installation Notes

Installation should be performed by a licensed electrician or qualified technician in accordance with the NEC and applicable local codes. De-energize and lock out the circuit before making any terminations. Use a calibrated ratcheting crimp tool rated for insulated terminals to ensure a full, secure crimp. Do not over-strip the conductor, as excess bare wire beyond the terminal barrel can compromise insulation integrity.
