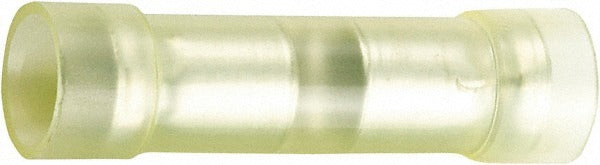

Value Collection BNYDF5 Butt Splice Terminal 4-6 Sq Mm

Product Description

The VALUE COLLECTION BNYDF5 is a fully insulated, crimp-on butt splice terminal designed for joining two conductors in a single in-line connection. The nylon insulation sleeve provides electrical isolation and mechanical protection at the crimp joint. This terminal accepts wire sizes from 4.00 to 6.00 square millimeters and is sized for yellow-range applications. At 1.233 inches overall length and 0.276 inches in diameter, the BNYDF5 is a compact connector suited for panel wiring, field splicing, and general electrical assembly work where a clean, insulated termination is required.

This butt splice terminal is used in residential and commercial electrical installations, control panel fabrication, equipment wiring, and field repair work. Electricians and instrumentation technicians use crimp-on butt splices when making in-line wire repairs or extending runs without using wire nuts or terminal blocks. The yellow color coding identifies compatibility with the 4.00 to 6.00 sq mm wire range, making wire gauge selection straightforward during installation.

Key Features

• Fully insulated nylon sleeve for electrical isolation and strain relief at the crimp zone
• Crimp-on connection type — no soldering required
• Compatible wire range: 4.00 to 6.00 square millimeters
• Yellow color coding indicates wire gauge range at a glance
• Copper contact material for reliable conductivity
• cUL Listed, UL Listed, and RoHS Compliant

Compatibility

Designed as a standard crimp-on butt splice for copper conductors in the 4.00 to 6.00 sq mm wire size range, suitable for general electrical wiring and control applications where a fully insulated in-line splice is required.

Installation Notes

Installation is performed by licensed electricians or qualified technicians using a calibrated ratcheting crimp tool appropriate for insulated terminals in this wire size range. De-energize the circuit and verify absence of voltage before making any splice connection. Strip conductors to the manufacturer-recommended strip length, insert fully into each barrel end, and apply a single crimp per entry. Do not attempt to crimp with pliers or non-ratcheting tools, as an improper crimp can result in a high-resistance connection or conductor pull-out.
