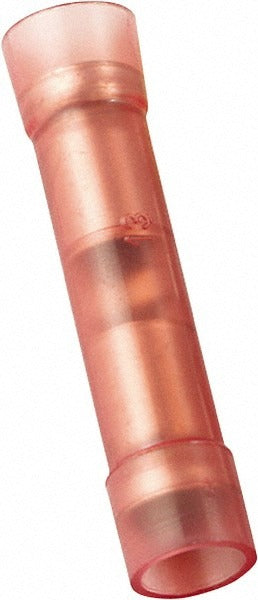

Value Collection BNYDF1 Butt Splice Terminal Nylon Crimp-on

Product Description

The VALUE COLLECTION BNYDF1 is a fully insulated, crimp-on butt splice terminal designed to join two conductors end-to-end in a single secure connection. The nylon insulation sleeve provides electrical isolation and mechanical protection at the crimp joint. Rated for wire sizes from 0.50 to 1.50 square millimeters, this red-coded terminal fits within the standard color-coding system used in low-voltage wiring applications. The copper contact material ensures reliable conductivity across the splice. At 1.024 inches overall length and 0.177 inches overall diameter, it fits in tight wire runs and panel builds without adding bulk. Electricians, HVAC technicians, and panel wiring professionals install these terminals using standard hand or ratcheting crimp tools.

This terminal is suited for residential and light commercial wiring tasks where a clean, insulated inline splice is required. Common applications include control wiring, low-voltage thermostat circuits, appliance lead repairs, and general electrical harness assembly. The red color coding identifies it as the appropriate size range for small-gauge wire in the 0.50 to 1.50 square millimeter range. It is sold individually with a minimum order quantity of 50 units, making it practical for stocking in service vans or shop bins where volume use is expected.

Key Features

• Fully insulated nylon sleeve for electrical isolation and strain relief at the crimp zone
• Crimp-on connection type — no soldering required, compatible with standard crimp tooling
• Copper contact material for reliable conductivity
• Red color coding identifies 0.50 to 1.50 sq mm wire size range
• cUL Listed, UL Listed, and RoHS Compliant
• Compact at 1.024 inches overall length for use in confined wiring spaces

Compatibility

Designed for use with copper conductors in the 0.50 to 1.50 square millimeter wire size range. Suitable as a general-purpose inline butt splice terminal for control wiring, low-voltage circuits, and light commercial or residential electrical applications.

Installation Notes

Installation is performed by a licensed electrician or qualified technician following applicable NEC guidelines. De-energize the circuit completely before making any splice connections. Strip wire ends to the appropriate length per the crimp tool and terminal manufacturer guidelines, insert one conductor into each end of the terminal, and apply a single crimp per entry using a calibrated crimp tool sized for this terminal range. Inspect the completed crimp for secure seating and verify insulation sleeve integrity before restoring power.
