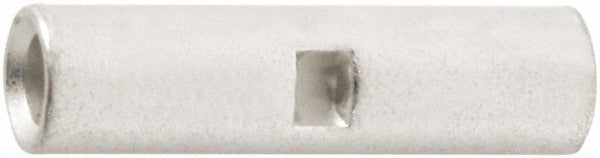

Value Collection BNT5-20 Butt Splice Crimp Terminal

Product Description

The VALUE COLLECTION BNT5-20 is a non-insulated, crimp-on butt splice terminal designed to join two conductors end-to-end in a single inline connection. Constructed from copper, it accepts wire sizes ranging from 4 to 6 square millimeters and measures 0.787 inches in overall length with an overall diameter of 0.213 inches. The crimp-on design creates a secure, gas-tight mechanical connection without the need for soldering. Electricians and electrical maintenance technicians use this terminal in control panels, motor wiring, and general electrical assemblies where a clean, compact inline splice is required.

This terminal is suited for residential and commercial electrical applications where non-insulated inline splices are acceptable within enclosures or conduit runs. It is commonly installed in control panels, junction boxes, and electrical equipment wiring harnesses. With two wire entries, it accommodates a straightforward conductor-to-conductor connection. The compact 20 mm body fits in tight spaces typical of terminal strips and panel wiring layouts. It meets UL Listed and cUL Listed standards as well as RoHS compliance requirements, making it appropriate for both domestic and export equipment builds.

Key Features

• Non-insulated copper construction for reliable conductivity in enclosed wiring environments
• Crimp-on connection type eliminates soldering and speeds installation
• Accepts 4 to 6 sq mm wire sizes for flexible conductor compatibility
• Overall length of 0.787 inches (20 mm) fits compact panel layouts
• Two wire entries for a clean inline butt splice
• UL Listed, cUL Listed, and RoHS Compliant

Compatibility

Designed as a standard non-insulated crimp-on butt splice terminal for use with 4 to 6 sq mm conductors in general electrical wiring and panel assembly applications.

Installation Notes

Installation should be performed by a qualified electrician following applicable NEC requirements and local codes. De-energize all circuits before terminating or splicing conductors. Use a calibrated crimp tool rated for the terminal size and wire gauge to ensure a proper mechanical connection. Non-insulated terminals used outside of enclosures or conduit must be protected with appropriate sleeving or heat-shrink insulation per code requirements.
