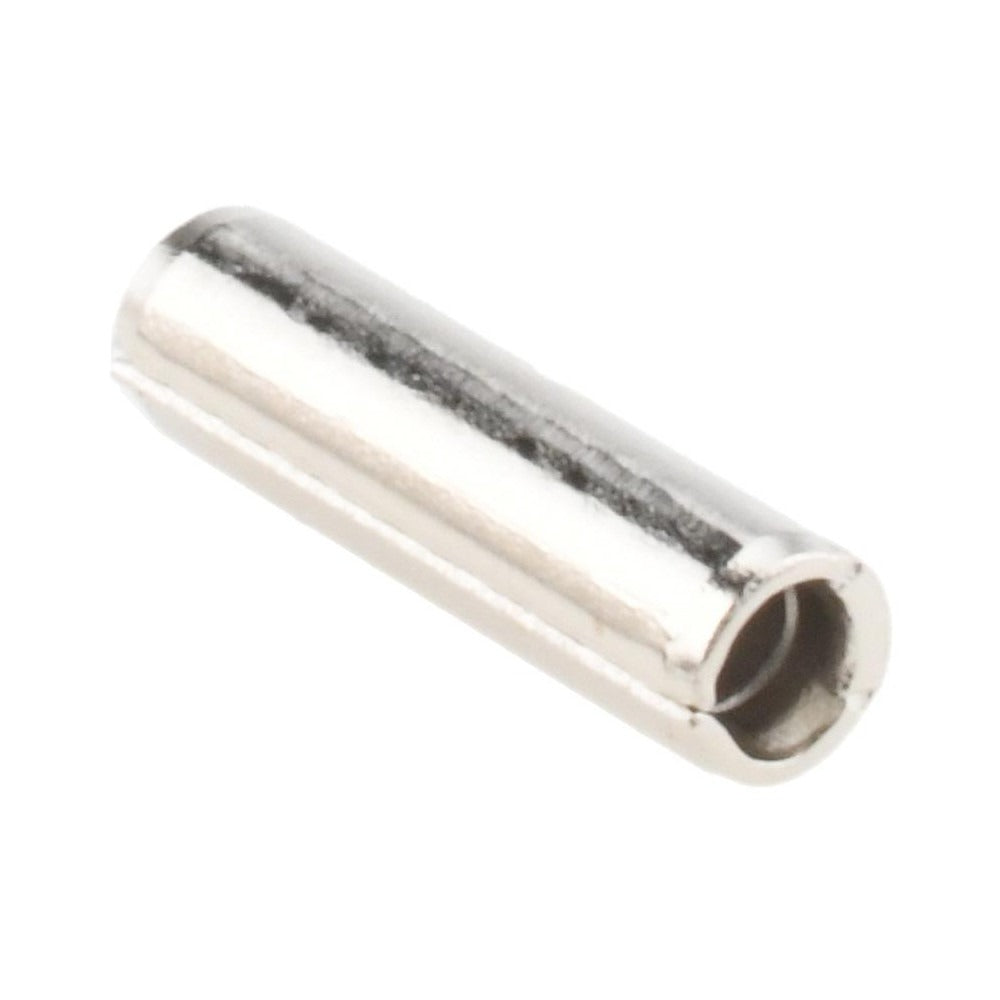

Value Collection BN2-FE Butt Splice Terminal 1.5-2.5 Sq Mm

Product Description

The VALUE COLLECTION BN2-FE is a non-insulated, crimp-on butt splice terminal designed to join two conductors in a single inline connection. It accepts wire sizes from 1.5 to 2.5 square millimeters and is constructed from copper for reliable conductivity. At 0.591 inches in overall length and 0.154 inches in overall diameter, this terminal is compact enough for tight wiring runs. It is a two-entry connector, meaning one wire enters from each end and both are secured by crimping. Electricians and wire harness technicians commonly use this style of terminal for splicing control wiring, panel wiring, and low-voltage circuit connections.

This butt splice terminal is suited for residential and light commercial electrical work where a clean, secure inline wire splice is required. Typical applications include control panel wiring, HVAC low-voltage circuits, and general electrical rework where conductors in the 1.5 to 2.5 sq mm range need to be joined end to end. The non-insulated design allows for inspection of the crimp joint and is compatible with standard heat shrink tubing applied after crimping when insulation is required by code or application.

Key Features

• Non-insulated crimp-on design for clean, inspectable splice joints
• Accepts wire sizes from 1.5 to 2.5 square millimeters
• Copper contact material for solid electrical conductivity
• Two-entry configuration joins conductors inline from both ends
• UL Listed and cUL Listed; RoHS Compliant
• Compact at 0.591 inches overall length and 0.154 inches overall diameter

Compatibility

Designed for use with copper conductors in the 1.5 to 2.5 square millimeter wire size range, suitable as a standard inline butt splice terminal in control wiring and general electrical applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize the circuit completely before making any splice connections. Use a calibrated ratcheting crimp tool sized for the terminal to ensure a proper mechanical and electrical connection. If the application requires insulation over the splice, slide heat shrink tubing onto the wire before crimping and apply after the crimp is complete.
