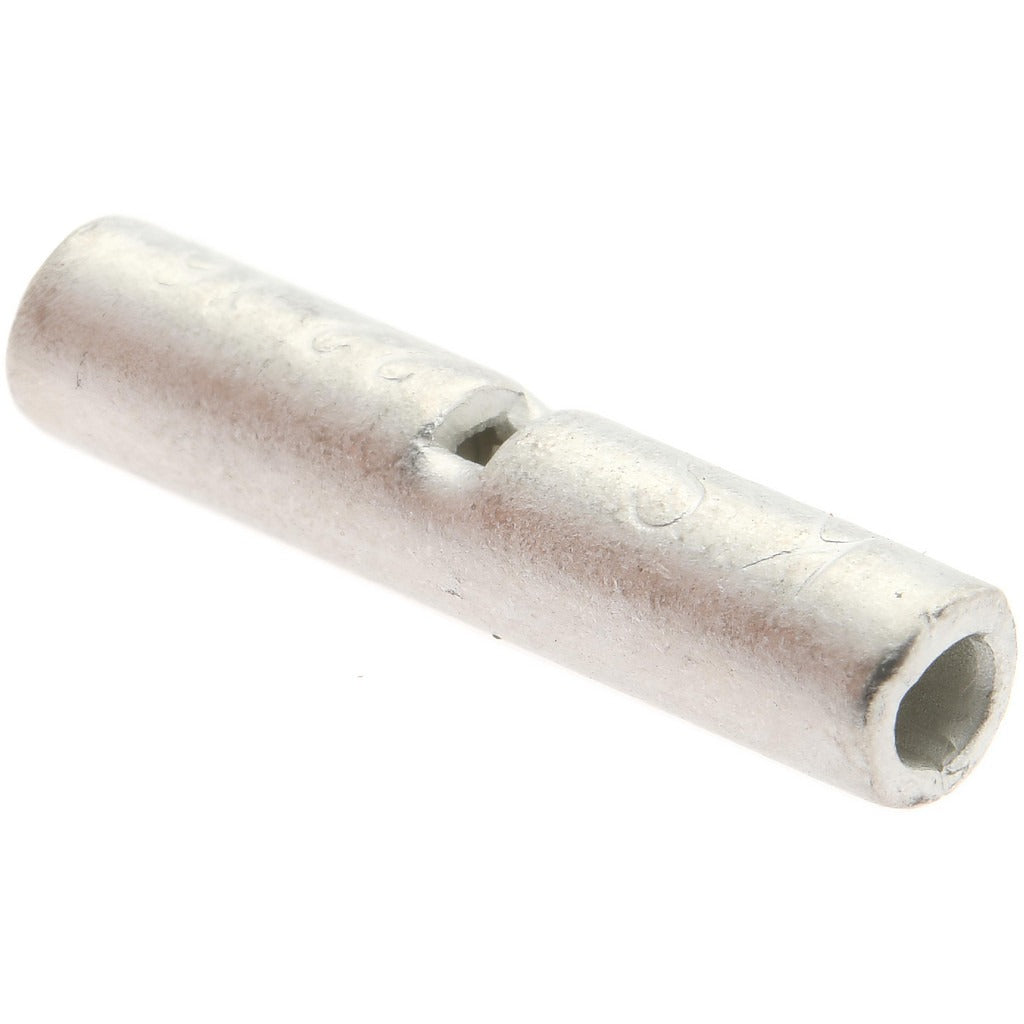

Value Collection BN1 Butt Splice Terminal Crimp-on 0.5-1.5 Sq Mm

Product Description

The VALUE COLLECTION BN1 is a non-insulated, crimp-on butt splice terminal designed for inline wire-to-wire connections in low-voltage wiring applications. Constructed from copper, it accepts wire sizes ranging from 0.50 to 1.50 square millimeters and provides a secure, conductive splice without the bulk of an insulated sleeve. The terminal measures 0.591 inches in overall length and 0.130 inches in overall diameter, making it compact enough for tight junction boxes and control panel wiring. It carries UL and cUL listings and is RoHS compliant. Electricians and HVAC technicians use this terminal when a clean, low-profile splice is needed on small-gauge conductors.

This butt splice terminal is suited for residential and light commercial electrical work, HVAC control wiring, and similar applications where 0.50 to 1.50 sq mm conductors require a reliable inline connection. Its non-insulated copper construction makes it a common choice when a heat-shrink sleeve or separate insulation will be applied over the splice, or where the splice point is housed inside an already-protected enclosure. The two-wire-entry design allows one conductor to be inserted from each end before crimping.

Key Features

• Non-insulated copper construction for reliable conductivity in small-gauge splices
• Accepts wire sizes from 0.50 to 1.50 square millimeters with two wire entries
• Crimp-on connection type for a fast, tool-secured termination
• Overall length of 0.591 inches and overall diameter of 0.130 inches for compact installs
• UL Listed, cUL Listed, and RoHS Compliant

Compatibility

Designed as an OEM-style crimp splice terminal for use with 0.50 to 1.50 sq mm copper conductors in standard low-voltage wiring assemblies.

Installation Notes

Installation should be performed by a qualified electrician or HVAC technician in accordance with applicable NEC requirements. De-energize the circuit completely before making any splice connections. Use a calibrated ratcheting crimping tool sized for the terminal to ensure a proper mechanical and electrical connection. Do not substitute pliers or uncalibrated tools, as an incomplete crimp can result in high-resistance connections or conductor pullout.
