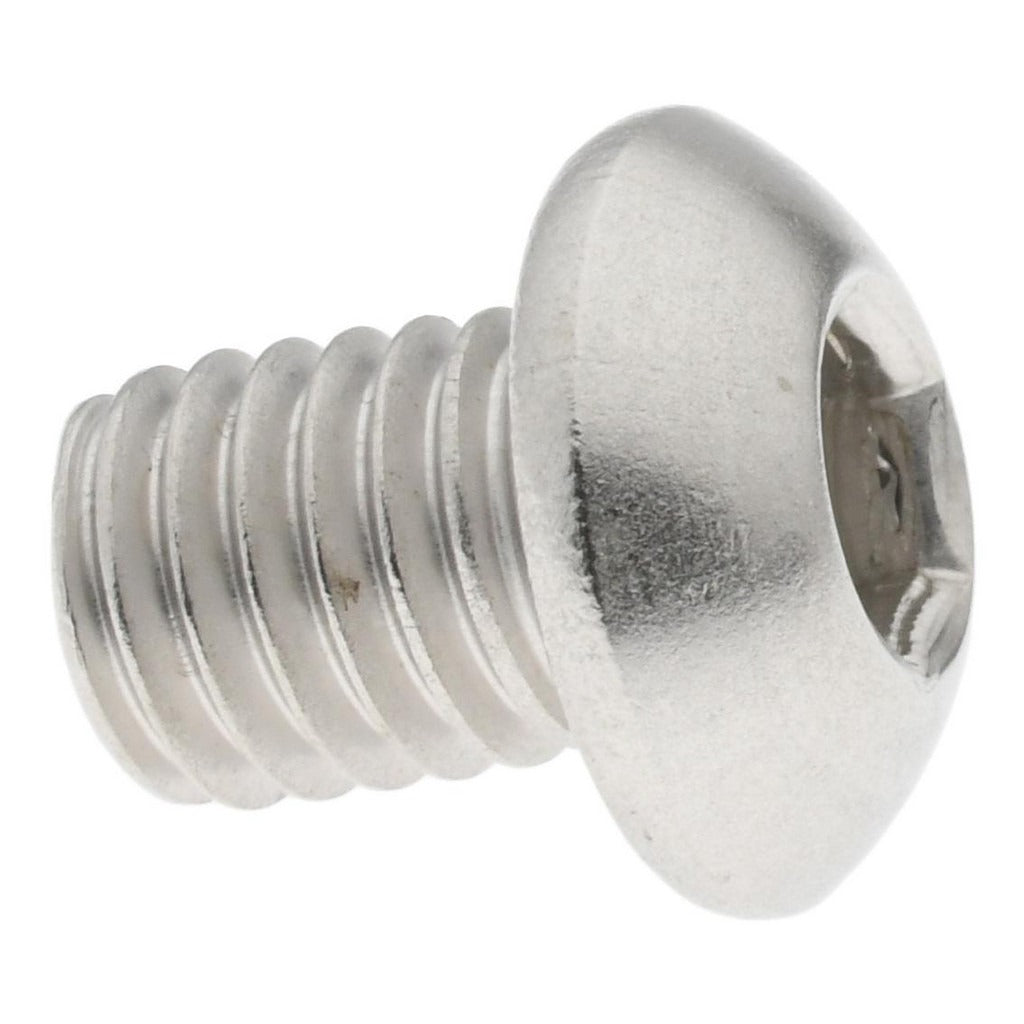

Value Collection BHS7X08010-050BX M8x1.25 Button Cap Screw

Product Description

The VALUE COLLECTION BHS7X08010-050BX is a fully threaded button socket cap screw manufactured from A2 (18-8) stainless steel with a bright, uncoated finish. This metric fastener features an M8x1.25 thread size, a 10 mm length under head, and a 5 mm hex socket drive. The button head profile provides a low-profile bearing surface compared to standard socket cap screws, making it well suited for assemblies where clearance above the fastener head is limited. It meets ANSI/ASME B18.3.4M and ISO 7380 standards and carries a right-hand, 6G thread fit class. Installation requires a 5 mm hex key. These screws are sold in a minimum order quantity of 50 pieces.

These button socket cap screws are used across a wide range of mechanical assembly applications including machine guards, enclosures, brackets, panels, and equipment frames. The A2 stainless steel construction provides good corrosion resistance, making these fasteners appropriate for indoor and moderately humid environments. They are commonly installed by machinists, millwrights, and general mechanical contractors working on light to medium structural assemblies where a flush or near-flush fastener head is required.

Key Features

• M8x1.25 metric thread with right-hand direction and 6G thread fit class
• 10 mm length under head, fully threaded
• 5 mm hex socket drive for standard hex key installation
• A2 (18-8) stainless steel with bright, uncoated finish for corrosion resistance
• Meets ANSI/ASME B18.3.4M and ISO 7380 fastener standards
• Low-profile button head reduces clearance requirements over standard cap screws

Compatibility

Designed as an ISO 7380-compliant metric button socket cap screw suitable for M8 threaded holes in general mechanical and structural assembly applications.

Installation Notes

Install using a calibrated 5 mm hex key or hex bit driver. Ensure the mating threaded hole is clean and free of debris before installation. De-energize or lock out any equipment before fastening components on powered machinery in accordance with applicable OSHA lockout/tagout procedures. Do not use an impact driver at full torque without a verified torque specification for the application.
