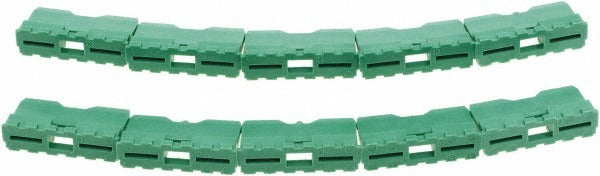

Value Collection BDW12P Dt Series Wedgelock Terminal Parts

Product Description

The VALUE COLLECTION BDW12P is a plastic wedgelock terminal part designed for use in Deutsch DT Series connector assemblies. Wedgelocks secure individual wire terminals inside the connector housing, preventing terminal backout under vibration and mechanical stress. This part is made from durable plastic construction and fits specifically into 12-way receptacle housings. The BDW12P is installed by automotive electricians, fleet technicians, and electrical contractors working with sealed connector systems in demanding environments. Each package contains 10 pieces.

The BDW12P wedgelock is used in automotive, commercial vehicle, agricultural, and heavy equipment electrical harness applications where DT Series connectors are the specified interface. It is appropriate for both new harness builds and field repairs on existing connector assemblies requiring terminal retention service. The 12-way receptacle configuration makes it suited for multi-circuit connector applications found in cab wiring, engine harness, and trailer connection systems.

Key Features

• Plastic construction resists corrosion and chemical exposure
• Designed specifically for Deutsch DT Series 12-way receptacle housings
• Secures wire terminals against backout from vibration and pull force
• Packaged in quantities of 10 for harness build and repair work
• Lightweight at 0.01 pounds per unit

Compatibility

Designed as an OEM-style replacement wedgelock for Deutsch DT Series 12-way receptacle connector housings.

Installation Notes

Installation is performed by automotive technicians or electrical harness assemblers. Before servicing any connector assembly, de-energize the circuit and confirm the system is fully powered down. The wedgelock is typically pressed into place after all terminals are seated in the housing; use the appropriate connector service tool to avoid deforming the plastic body. Do not force the wedgelock into a housing that has improperly seated terminals, as this can damage both the terminals and the housing.
