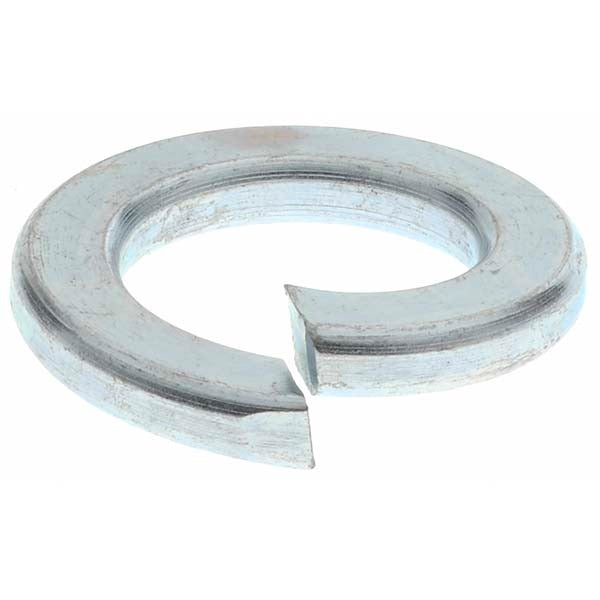

Value Collection BDNA-MP42457 M14 Split Lock Washer

Product Description

The VALUE COLLECTION BDNA-MP42457 is a metric split lock washer designed for use with M14 fasteners. Made from Grade 8 spring steel with a zinc plated finish, this washer provides reliable tension and vibration resistance in bolted assemblies. The split ring design creates a spring action that bites into the fastener and mating surface, resisting loosening under load. Inside diameter ranges from 14.2 to 14.7mm, with a maximum outside diameter of 24.1mm and a thickness of 3mm. Licensed trades and maintenance professionals use this washer in mechanical, structural, and equipment assembly applications where fastener retention is critical.

This split lock washer is suited for general industrial and mechanical assembly work involving M14 bolts and screws. Typical applications include equipment mounting, structural connections, and machinery assembly where vibration or dynamic loading can cause fastener loosening over time. The zinc plated finish provides a basic level of corrosion resistance suitable for indoor and light-duty environments. This washer is sold individually per package with a minimum order quantity of 50 pieces.

Key Features

• Grade 8 spring steel construction for consistent clamping force and spring-back under load
• Zinc plated finish for basic corrosion resistance in indoor and light-exposure environments
• Inside diameter of 14.2 to 14.7mm fits standard M14 fasteners
• Maximum outside diameter of 24.1mm and 3mm thickness for compact, reliable seating
• Split ring design bites into bearing surfaces to resist vibration-induced loosening

Compatibility

Designed for use with M14 metric screws and bolts in standard mechanical and structural assemblies where a split lock washer is specified.

Installation Notes

Install with the split ends positioned to grip both the fastener bearing surface and the mating material as the fastener is torqued down. Place the washer between the nut or bolt head and the mating surface, never between two mating structural members. Ensure the mating surface is clean and free of debris before assembly. Follow applicable fastener torque specifications provided by the equipment manufacturer or relevant standards for the assembly being serviced.
