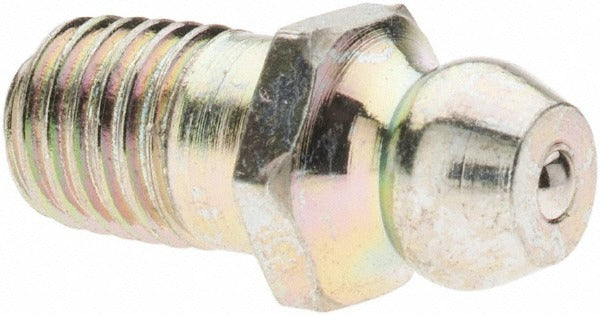

Value Collection BDNA-7600 Taper Thread Grease Fitting 1/4-28

Product Description

The VALUE COLLECTION BDNA-7600 is a taper thread grease fitting designed to deliver lubricant to bearing housings, pivot points, and other grease-serviceable components. The fitting uses a 1/4-28 taper thread that cuts into the receiving port as it is installed, creating a leak-resistant mechanical seal without a separate thread sealant. A zinc-plated finish provides corrosion resistance in typical shop and field environments. This type of fitting is installed by maintenance technicians, millwrights, and mechanics across industrial, commercial, and fleet service applications wherever standard zerk-style lubrication points are specified.

The BDNA-7600 is suited for use in lubrication maintenance on machinery, conveyor systems, agricultural equipment, and vehicle chassis components. Any grease-serviceable assembly that calls for a 1/4-28 taper thread port accepts this fitting directly. It is compatible with standard grease guns using a button-head or needle coupler tip. The zinc-plated steel construction holds up to moderate moisture exposure common in shop and outdoor service environments.

Key Features

• 1/4-28 taper thread self-seals on installation without additional thread compound
• Zinc-plated finish resists corrosion in shop and field service conditions
• Accepts standard button-head and needle grease gun couplers
• Lightweight construction at 0.01 pounds per fitting
• Sold individually with a minimum order quantity of 25 units

Compatibility

Designed as a direct replacement for 1/4-28 taper thread grease fitting ports found on general industrial machinery, vehicle chassis, and equipment bearing housings.

Installation Notes

Installation requires a wrench sized to the fitting hex; thread the fitting into the cleaned and chased port by hand first, then snug with a wrench — do not overtighten, as taper threads can crack cast housings if driven too far. Relieve any residual grease pressure in the fitting port before removal or replacement. Follow equipment manufacturer torque guidance where specified. A licensed mechanic or qualified maintenance technician should perform installation on safety-critical assemblies.
