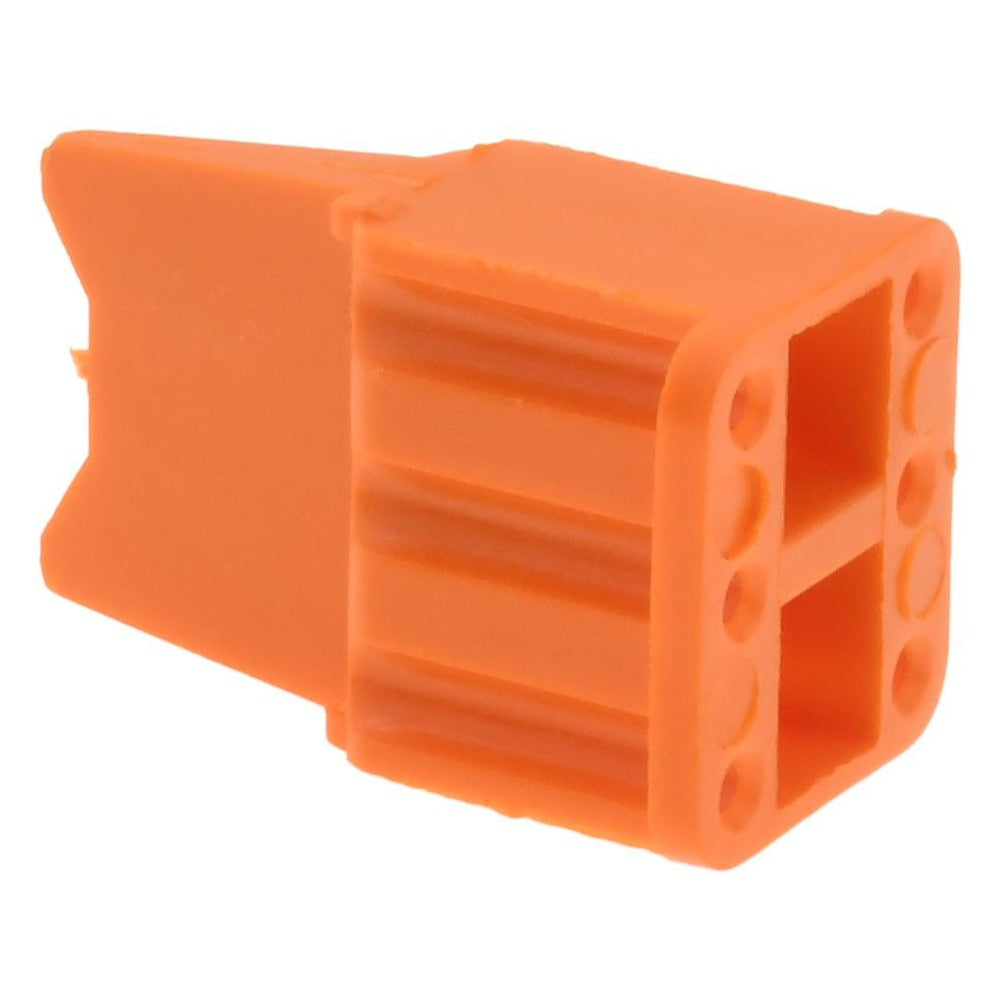

Value Collection BDMPWM6S Dtm Wedgelock Terminal Parts

Product Description

The VALUE COLLECTION BDMPWM6S is a DTM Series wedgelock terminal part used to secure and retain terminal contacts within DTM Series connector housings. Wedgelocks insert into the rear of a connector body to lock individual terminals in place, preventing pullback and maintaining reliable electrical contact under vibration and mechanical stress. This part is sold in a pack of 2 and is commonly installed by automotive electrical technicians, fleet maintenance professionals, and industrial equipment wiring specialists working on connector assembly or field repair applications.

DTM Series connectors are widely used in heavy-duty automotive, agricultural, and off-highway equipment wiring harnesses where secure, sealed connections are required. The BDMPWM6S wedgelock is suited for connector assembly benchtop work as well as in-the-field harness repair. Its compact size makes it applicable in tight routing environments common to engine bays and chassis wiring runs.

Key Features

• DTM Series wedgelock design for positive terminal retention within connector housings
• Prevents terminal pullback under vibration and load cycling
• Compact form factor suitable for tight wiring harness installations
• Sold in a pack of 2 to support connector pair assembly or repair
• Low individual weight minimizes added mass to the harness assembly

Compatibility

Designed for use with DTM Series connector housings requiring wedgelock terminal retention components. Verify connector series and terminal cavity count before installation to confirm fitment.

Installation Notes

Installation is performed by automotive or industrial electricians during harness assembly or field connector repair. Ensure all terminal contacts are fully seated in the connector housing before inserting the wedgelock. No special tools are typically required, though a terminal removal tool may be needed to extract the wedgelock during service. Follow applicable wiring harness assembly standards and disconnect all power from the circuit before servicing any connector.
