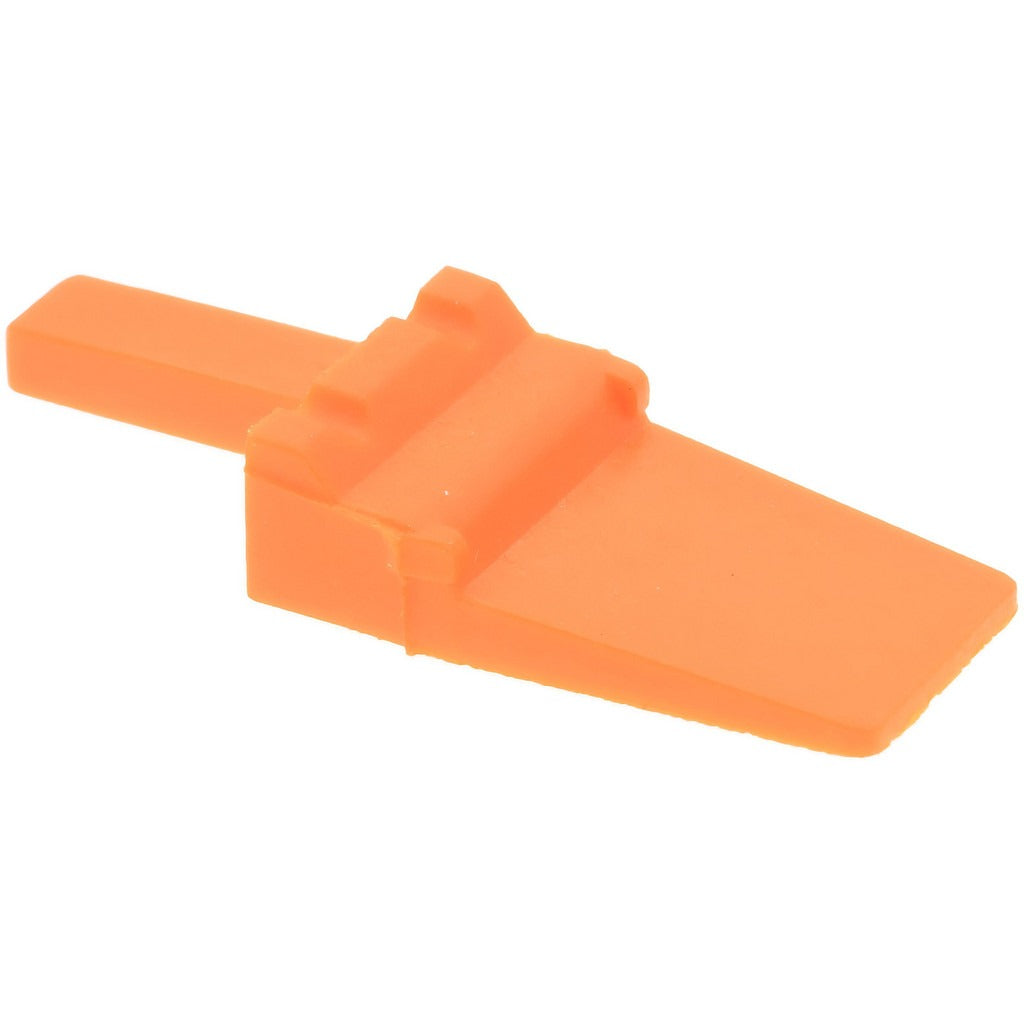

Value Collection BDMPWM2P Dtm Series Wedgelocks 2 Pack

Product Description

The VALUE COLLECTION BDMPWM2P consists of DTM Series Wedgelocks used in automotive electrical connector applications. Wedgelocks are secondary locking components that insert into DTM-style connectors to secure terminal positions and prevent back-out under vibration or load. They are a critical reliability component in automotive, heavy equipment, and industrial wiring harness assemblies. This package contains 2 wedgelock pieces and weighs approximately 0.01 pounds, making it a compact, lightweight addition to any connector repair or assembly kit.

DTM Series Wedgelocks are used in demanding environments where connector integrity must be maintained under mechanical stress, temperature cycling, and vibration. Typical applications include automotive wiring harnesses, off-highway equipment, agricultural machinery, and industrial control systems that rely on DTM-style multi-pin connectors. Technicians installing or servicing these connectors use wedgelocks as a final assembly step to lock terminals in place after insertion into the connector housing.

Key Features

• Designed for DTM Series connector systems as secondary terminal locking components
• Prevents terminal back-out under vibration and mechanical stress
• Package quantity of 2 pieces per pack
• Lightweight construction at approximately 0.01 pounds per package
• Suitable for automotive, heavy equipment, and industrial wiring harness applications

Compatibility

Designed as a replacement or service component for DTM Series connector assemblies used in automotive and industrial wiring harness applications.

Installation Notes

Installation of wedgelocks is typically performed by automotive electricians or wiring harness technicians. Before servicing any connector, disconnect the vehicle battery or de-energize the relevant circuit. The wedgelock should be inserted into the connector housing only after all terminals have been fully seated and locked in their cavities. Do not force the wedgelock if resistance is felt, as this may indicate a terminal is not fully seated.
