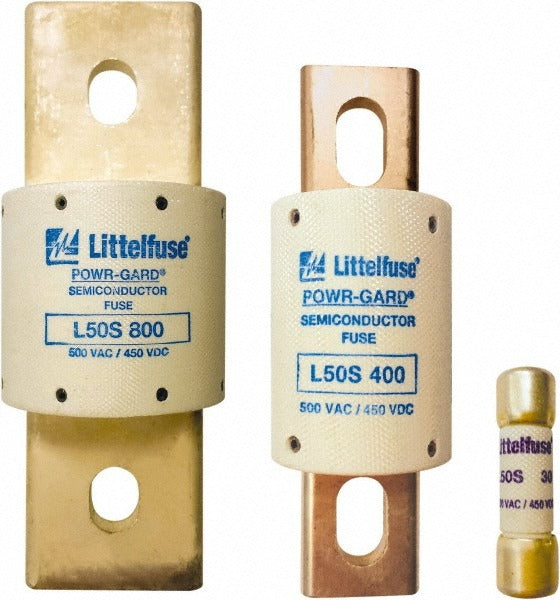

Value Collection BD-L50S-50- Fast-acting Cartridge Fuse 50A

Product Description

The VALUE COLLECTION BD-L50S-50- is a cartridge-style fast-acting fuse rated at 50 amps, designed to provide overcurrent protection in industrial and commercial electrical distribution systems. With an overall length of 3-3/16 inches and a diameter of 13/16 inches, this fuse fits standard bolt-on fuse holders commonly found in panel boards and disconnect switches. Its fast-acting response characteristic means it clears fault currents rapidly, limiting damage to downstream equipment. The fuse is rated for 20 kiloamps of interrupt capacity at DC and 200 kiloamps at AC, making it suitable for high-fault-current environments. Licensed electricians and electrical contractors are the primary installers of this component.

This fuse is appropriate for use in residential service equipment, commercial electrical panels, and light industrial disconnect applications where fast-acting overcurrent protection and bolt-on mounting are required. The 13/16-inch diameter and 3-3/16-inch length conform to standard Class dimensions, allowing straightforward replacement in existing fuse blocks without modification. Sold in a package quantity of five units.

Key Features

• 50-amp continuous current rating for robust overcurrent protection
• Fast-acting fuse timing for rapid fault clearing and downstream equipment protection
• High interrupt ratings: 20 kA at DC and 200 kA at AC
• Bolt-on mount type for secure installation in standard fuse holders
• CSA Certified under File LR29862-99 and UL Recognized under File E71611
• Sold in packs of five for convenient stocking and field use

Compatibility

Designed as an OEM-style replacement for bolt-on cartridge fuse applications requiring a fast-acting 50-amp fuse measuring 3-3/16 inches in overall length and 13/16 inches in diameter.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Always de-energize and lock out the circuit before removing or installing fuses. Verify that the fuse holder is rated for the interrupt capacity of the replacement fuse prior to installation. Do not install fuses in holders that show signs of heat damage, corrosion, or mechanical wear.
