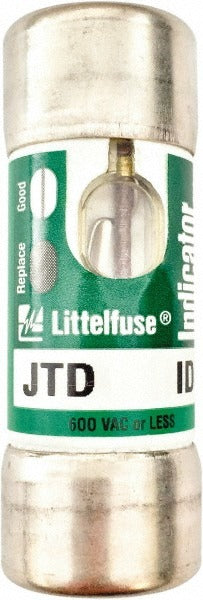

Value Collection BD-JTD-45-ID Class J 45A Time Delay Fuse

Product Description

The VALUE COLLECTION BD-JTD-45-ID is a Class J time delay cartridge fuse rated at 45 amps with a 300 kA interrupting rating at AC. It is designed for general-purpose overcurrent protection in electrical distribution systems where high fault-current capacity and a time delay characteristic are required. The time delay action allows temporary inrush currents to pass without nuisance tripping while still providing fast response to sustained overloads and short circuits. The indicating feature provides a visible signal when the fuse has opened, simplifying fault diagnosis during service. Licensed electricians and electrical contractors are the primary installers of this fuse class.

This fuse is suited for residential, commercial, and light industrial electrical panels and feeder circuits where Class J fuse blocks or holders are installed. Its compact cartridge body measures 2-3/8 inches in overall length and 1-1/16 inches in diameter, fitting standard Class J fuse holders. The high 300 kA interrupting rating makes it appropriate for installations close to the service entrance where available fault current is elevated. Panels, motor branch circuits, and feeder protection are typical applications.

Key Features

• 45 A continuous current rating for general-purpose branch and feeder protection
• Time delay action tolerates motor inrush and transformer energization without nuisance opening
• 300 kA interrupting rating at AC for high-fault-current service entrance and feeder applications
• Indicating design provides visual confirmation of a blown fuse
• Class J cartridge body: 2-3/8 inches OAL x 1-1/16 inches diameter
• CSA Certified and UL Listed for compliance with North American electrical codes

Compatibility

Designed as an OEM-style replacement for Class J cartridge fuse holders and fusible disconnect switches rated for Class J fuses at 45 A.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always de-energize and lock out the circuit before removing or installing a fuse. Use insulated fuse pullers rated for the voltage of the circuit; never handle fuses in energized holders with bare hands or unrated tools. Verify that the replacement fuse class, amperage, and voltage rating match the original fuse and the equipment nameplate before restoring power.
