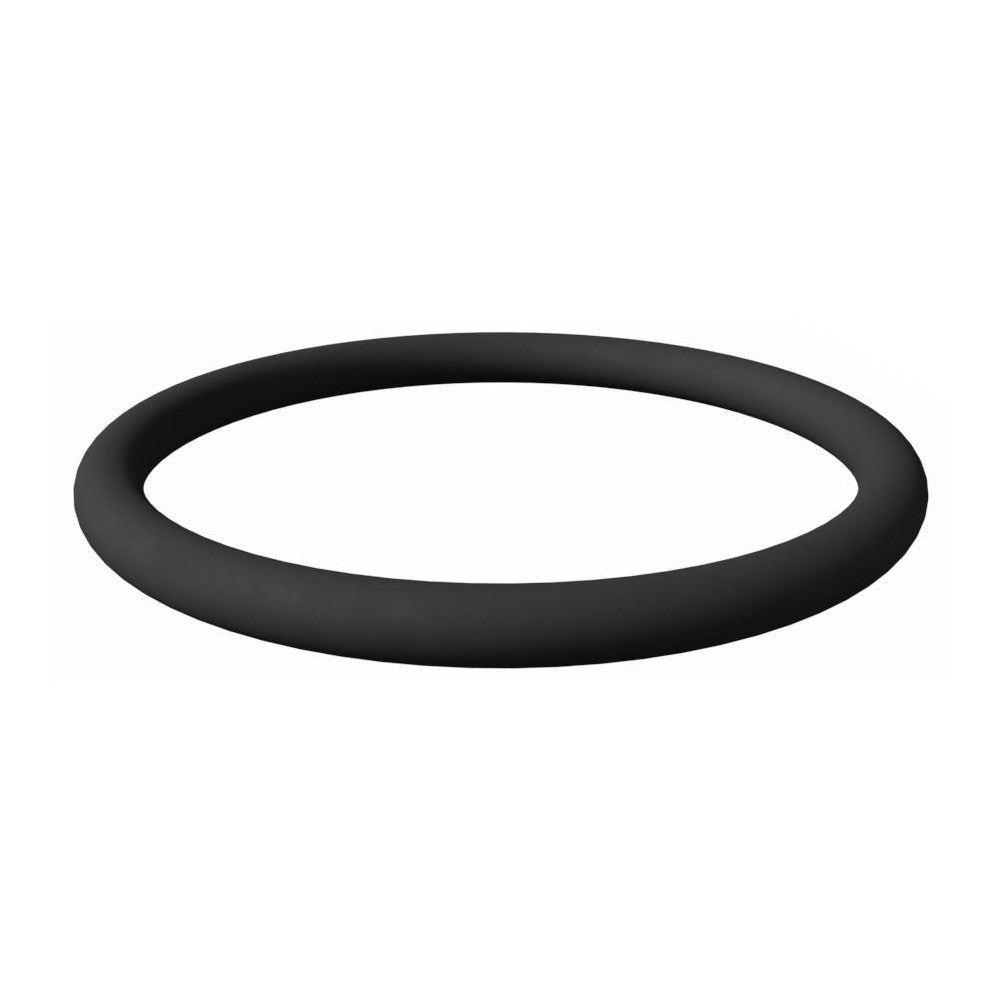

Value Collection BD-C562412 Viton O-ring Dash 325

Product Description

The VALUE COLLECTION BD-C562412 is a Viton O-ring sized to Dash 325 dimensions, with a 1.5-inch inside diameter, 1.875-inch outside diameter, and a 0.21-inch cross-section thickness. Viton fluoroelastic compound gives this ring strong resistance to fuels, hydraulic fluids, oils, and solvents across a wide service temperature range of -15 degrees F to 400 degrees F. A 75 durometer hardness rating balances flexibility with compression resistance, making it a reliable static or dynamic seal in demanding fluid and pneumatic systems. This O-ring is installed by licensed plumbers, hydraulic technicians, HVAC mechanics, and industrial maintenance professionals.

This O-ring is suited for sealing applications in hydraulic cylinders, pneumatic fittings, fuel system components, chemical processing equipment, and HVAC refrigerant-side connections where Viton compound is specified. It is commonly used in both residential and commercial maintenance settings where elevated temperatures or aggressive fluid exposure would degrade standard nitrile or EPDM seals. The package contains 10 O-rings, making it practical for service techs who replace seals in quantity or want backup units on hand.

Key Features

• Viton fluoroelastic material resists fuels, oils, hydraulic fluids, and many solvents
• Dash 325 standard sizing: 1.5 inches ID, 1.875 inches OD, 0.21 inches thick
• Service temperature range from -15 degrees F to 400 degrees F
• 75 durometer hardness for reliable compression seal in static and dynamic applications
• Packaged in quantities of 10 per unit, with a minimum order of 1 package

Compatibility

Designed as an OEM-style replacement or service seal for any application requiring a standard Dash 325 O-ring in Viton compound where Viton fluoroelastic sealing material is specified.

Installation Notes

Installation is performed by qualified mechanics or technicians following applicable system service procedures. Always depressurize and isolate the system before removing any existing seal. Clean the groove thoroughly and inspect for damage before seating the new O-ring. Avoid using sharp tools that could nick or cut the sealing surface during installation.
