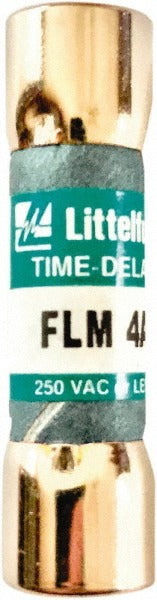

Value Collection BD-29727 Cartridge Time Delay Fuse 4A 250V

Product Description

The VALUE COLLECTION BD-29727 is a cartridge-style time delay fuse rated at 4 amps and 250 volts, with an interrupt capacity of 10 kA at AC. It is designed to protect electrical circuits from overcurrent conditions by allowing brief inrush surges to pass while opening the circuit on sustained faults. The time delay characteristic makes it well suited for motor and transformer loads where momentary startup currents would otherwise cause nuisance trips. Licensed electricians and industrial maintenance technicians are the primary installers of this class of protective device.

This fuse fits applications in residential, commercial, and light industrial electrical panels and equipment enclosures where a compact cartridge fuse is required. The 13/32-inch diameter and 1.5-inch overall length conform to standard ferrule cartridge fuse dimensions, making it a direct fit in compatible fuse holders and fuse blocks designed for that body size. It carries CSA Certification and UL Listing, meeting common North American electrical safety requirements for branch circuit and supplemental overcurrent protection.

Key Features

• Time delay design absorbs motor inrush and transformer startup surges without nuisance opening
• 4-amp, 250-volt rating suitable for low-amperage branch circuit and equipment protection
• 10 kA AC interrupt capacity provides solid fault-current handling for the amperage class
• Cartridge body type fits standard ferrule fuse holders and fuse blocks
• CSA Certified and UL Listed to meet North American installation code requirements
• Compact form factor: 1.5 inches overall length, 13/32-inch (0.406 inch) diameter

Compatibility

Designed as a standard ferrule cartridge fuse replacement for use in fuse holders and fuse blocks accepting a 13/32-inch diameter by 1.5-inch overall length time delay fuse rated at 4 amps and 250 volts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always de-energize and verify the absence of voltage on the circuit before removing or installing any fuse. Use an appropriately rated fuse puller when extracting cartridge fuses from live-capable holders to avoid contact with energized surfaces. Confirm the replacement fuse amperage, voltage, and time delay rating match the original equipment specification before reinstalling power.
