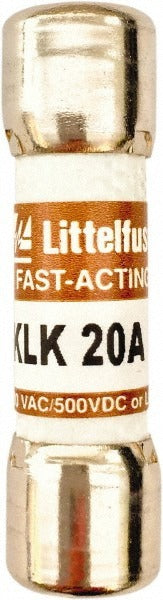

Value Collection BD-29613 Cartridge Fast-acting Fuse 20A 600V

Product Description

The VALUE COLLECTION BD-29613 is a cartridge-style fast-acting fuse rated for 20 amps at 600 volts, with a 100 kA interrupting rating at AC. It measures 1-1/2 inches in overall length and 13/32 inches in diameter, fitting standard cylindrical fuse holders used across industrial, commercial, and trade electrical applications. Fast-acting fuses like this one respond immediately to overcurrent conditions, providing no intentional time delay, which makes them appropriate for protecting circuits and equipment that cannot tolerate sustained overloads. Electricians and maintenance technicians install this type of fuse in panel boards, disconnect switches, and equipment control circuits where precise overcurrent protection is required.

This fuse is suited for use in low-voltage branch circuits, control panels, and power distribution equipment rated up to 600 volts. Its compact cylindrical form factor is common in residential, commercial, and light industrial service work. The 13/32-inch diameter and 1-1/2-inch length correspond to a standard dimensioned fuse class widely used in fusible disconnect switches and fuse blocks. This fuse ships in a package quantity of 10, making it practical for service stock or field replacement kits.

Key Features

• Fast-acting response with no intentional time delay for immediate overcurrent protection
• Rated 20 amps at 600 volts for broad circuit coverage
• 100 kA interrupting rating at AC for high-fault-current environments
• Cartridge body type fits standard cylindrical fuse holders
• CSA Certified and UL Listed for compliance with North American electrical standards
• Package quantity of 10 units supports service stock and bulk replacement needs

Compatibility

Designed as a standard-dimension cylindrical cartridge replacement fuse for use in fuse holders, fuse blocks, and disconnect switches that accept 13/32-inch diameter by 1-1/2-inch overall length fast-acting fuses rated up to 600 volts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. Always de-energize and lock out the circuit before replacing a fuse. Verify that the replacement fuse matches the amperage, voltage, and interrupting rating specified for the circuit. Do not substitute a higher-amperage fuse or bypass the fuse holder.
