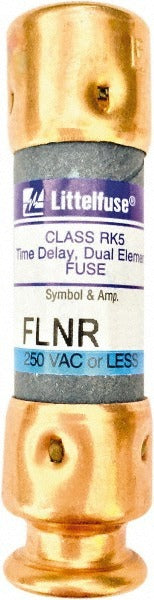

Value Collection BD-29561 RK5 Time Delay Fuse 5A

Product Description

The VALUE COLLECTION BD-29561 is a cartridge-style, time delay fuse rated at 5 amps and classified RK5 for general purpose overcurrent protection. The time delay characteristic allows temporary inrush currents — common during motor startup or transformer energization — to pass without nuisance opening, while still responding quickly to sustained fault conditions. This dual-element fuse body measures 2 inches in overall length and 9/16 inches in diameter, making it a standard-size cartridge that seats in conventional fuse holders and disconnect blocks. Interrupting capacity is rated at 200 kA, suitable for demanding branch circuit applications. Installers in electrical, HVAC, and light industrial service work reach for this fuse type regularly.

This fuse is suited for residential and commercial applications where branch circuit or equipment protection is required and load characteristics involve inrush current. Typical installation scenarios include motor-load circuits, HVAC equipment disconnects, control panels, and general-purpose panelboard applications. The RK5 class designation indicates it fits Class RK5 rejection-style fuse holders, which prevent substitution with lower-rated fuse classes. Sold in a package quantity of 10, this fuse is a practical stocking item for service vehicles and shop inventory.

Key Features

• Time delay design accommodates motor inrush without nuisance tripping
• RK5 class cartridge body fits rejection-style fuse holders
• 200 kA interrupting capacity for high-fault-current environments
• Dual-element construction provides both overload and short-circuit protection
• Meets CSA, UL 198L, and Federal Specification W-F-1814 QPL requirements
• Package quantity of 10 supports stocking and service inventory needs

Compatibility

Designed as an OEM-style replacement or stocking fuse for RK5-class cartridge fuse holders used in general-purpose branch circuit and equipment protection applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before removing or installing any fuse. Confirm the fuse holder is rated for Class RK5 cartridges and that the circuit voltage and amperage do not exceed the fuse rating. Never substitute a higher-amperage fuse to resolve nuisance tripping — identify and correct the underlying fault condition first.
