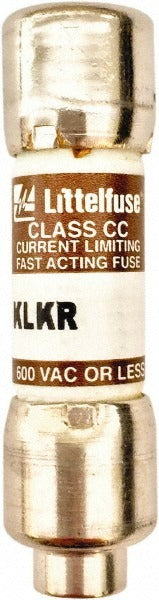

Value Collection BD-29317 Cc Cartridge Fast-acting Fuse 8A 600V

Product Description

The VALUE COLLECTION BD-29317 is a CC-class cartridge fast-acting fuse rated at 8 amps and 600 volts. It delivers rapid overcurrent protection by interrupting fault current before downstream components sustain damage. The fast-acting response makes it appropriate for circuits that require immediate disconnect on overload or short-circuit events. With an interrupting rating of 200 kiloamps (kA) RMS symmetrical, this fuse is suited for high-available-fault-current installations. Licensed electricians and industrial maintenance technicians install this type of fuse in branch-circuit and equipment protection applications where a CC-class rejection feature prevents substitution with non-rated fuse types.

This fuse is used in residential, commercial, and light industrial electrical panels and equipment requiring CC-class fuse protection. The rejection feature ensures only correctly rated fuses seat in CC-style fuse holders, preventing accidental installation of lower-interrupting-capacity fuses. Typical applications include motor control centers, control panels, and distribution boards operating at voltages up to 600 volts AC. It measures 1-1/2 inches overall length and 13/32 inches in diameter, fitting standard CC fuse blocks and holders designed for that body size.

Key Features

• CC-class rejection design prevents installation of non-CC-rated fuses in dedicated holders
• Fast-acting response provides immediate overcurrent and short-circuit protection
• 200 kA RMS symmetrical interrupting rating suitable for high-fault-current environments
• Rated 600 volts AC for broad panel and equipment compatibility
• CSA Certified and UL Listed to recognized North American safety standards
• Compact cartridge body: 1-1/2 inches OAL x 13/32 inches diameter

Compatibility

Designed for use in standard CC-class fuse holders and fuse blocks rated for 600 volts and accepting a 1-1/2 inch OAL by 13/32 inch diameter cartridge body.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. Always de-energize and lockout/tagout the circuit before removing or installing fuses. Use an insulated fuse puller rated for the voltage class when servicing energized fuse holders. Verify the fuse holder is rated for CC-class fuses and matches the voltage and amperage of the replacement fuse before installation.
