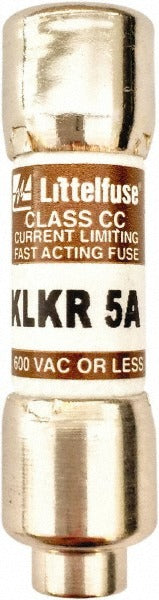

Value Collection BD-29314 Cc Cartridge Fuse 5A 600V

Product Description

The VALUE COLLECTION BD-29314 is a CC-class, fast-acting cartridge fuse rated at 5 amps and 600 volts, with an interrupt rating of 200 kiloamperes (kA) RMS symmetrical. It measures 1.5 inches in overall length and 13/32 inches in diameter, conforming to the compact CC-class body dimensions. This fuse provides overcurrent protection in control circuits, motor branch circuits, and power distribution panels. Electricians and industrial maintenance technicians install this type of fuse to protect sensitive downstream equipment from fault currents. The fast-acting response characteristic makes it well suited for circuits without high inrush loads.

This cartridge fuse is appropriate for use in residential, commercial, and light industrial electrical systems where CC-class rejection fuse holders are installed. The rejection feature prevents substitution of non-CC or lower-rated fuses in the same holder, preserving system protection integrity. Common installation scenarios include control panels, HVAC control circuit protection, and branch circuit protection in distribution boards. Each package contains 10 fuses.

Key Features

• CC-class rejection design prevents installation of non-compliant fuse types in rejection-style holders
• Fast-acting timing for circuits without motor inrush or transformer magnetizing surge
• 200 kA RMS symmetrical interrupt rating for high-fault-current environments
• 600-volt rating supports both single-phase and three-phase control circuit applications
• CSA Certified and UL Listed for code-compliant installations
• Compact 1.5-inch OAL fits standard CC-class fuse holders and fusible disconnect blocks

Compatibility

Designed for use in CC-class rejection-style fuse holders and fusible disconnects rated for 600 volts and fast-acting fuse timing.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. Always de-energize and verify absence of voltage on the circuit before replacing fuses. Use an appropriately rated fuse puller when removing or installing cartridge fuses to avoid contact with energized parts. Do not substitute a time-delay or non-CC-class fuse in a rejection holder designed for this fuse class.
