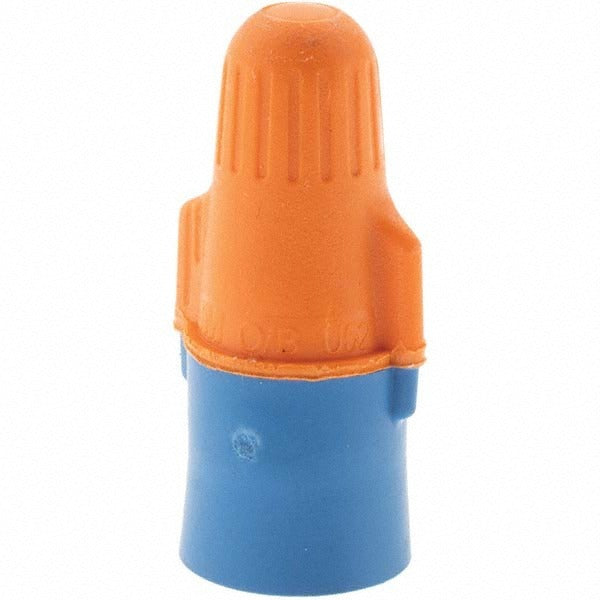

Value Collection BD-23587 Wing Wire Connector 22-12 Awg 50pk

Product Description

The VALUE COLLECTION BD-23587 is a wing-style twist-on wire connector rated for 22 to 12 AWG conductors and 600 volts. The wing ears allow for fast, tool-free installation, letting technicians seat and tighten the connector with two fingers even in tight junction boxes. The connector is rated to 221 degrees F maximum operating temperature, making it suitable for branch circuit splices and fixture connections in residential and light commercial environments. It is supplied in a pack of 50. Electricians and HVAC service techs are the primary installers for this type of connector.

This connector is appropriate for use in standard wire-splice applications across residential wiring, commercial branch circuits, control wiring, and light fixture connections. The dual-color blue and orange shell provides quick visual identification on the job. The 22 to 12 AWG range covers most low-voltage control circuits as well as standard 14 and 12 AWG branch circuit conductors common in NEC-governed installations.

Key Features

• Wing ears allow tool-free tightening in confined spaces
• Rated 600 volts for branch circuit and control circuit use
• 221 degrees F maximum operating temperature
• Accepts 22 to 12 AWG conductors
• UL Listed (File E23438) and CSA certified (LR15503)
• Pack of 50 connectors per package

Compatibility

Designed for general-purpose wire splicing with 22 to 12 AWG solid or stranded copper conductors in standard residential and light commercial electrical applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the circuit before making any wire connections. Strip conductors to the appropriate length, hold the wires parallel, and twist the connector clockwise until snug, using the wing ears for leverage. Do not overtighten or force conductors larger than the 12 AWG maximum rating into the connector.
