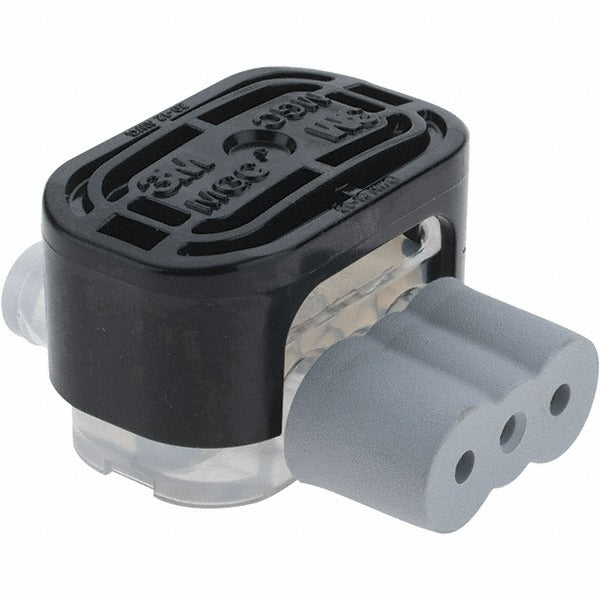

Value Collection BD-21800 Idc Pigtail Splice Connector 5 Pack

Product Description

The VALUE COLLECTION BD-21800 is an IDC (insulation displacement connector) pigtail quick splice connector designed for fast, tool-free wire splicing on 20 to 12 AWG conductors. The insulation displacement termination method cuts through wire insulation on contact, creating a reliable electrical connection without stripping. Black housing aids identification in wire management applications. Each package contains 5 connectors. Licensed electricians and low-voltage technicians use these connectors where quick inline splices are needed without soldering or traditional terminal blocks.

This connector suits residential and light commercial electrical work where a pigtail branch connection must be made on existing wire runs without cutting the main conductor. Common applications include lighting circuits, low-voltage control wiring, HVAC thermostat wire, and similar 12 to 20 AWG installations. The IDC design speeds up field connections on repetitive wiring tasks.

Key Features

• IDC termination — no wire stripping required for fast field installation
• Compatible wire range: 20 to 12 AWG
• Black housing for visual identification in wiring assemblies
• UL Listed construction meets recognized safety standards
• RoHS compliant materials
• Sold in a 5-pack for multi-point splice jobs

Compatibility

Designed for use with 20 to 12 AWG solid or stranded conductors in standard residential and light commercial wiring applications where IDC pigtail splice connections are required.

Installation Notes

Installation is performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before making any splice connection. Insert the conductors into the designated ports and compress the connector fully to seat the IDC contacts through the insulation. Do not use on wire gauges outside the 20 to 12 AWG rated range, as improper gauge use can result in a failed or unsafe connection.
