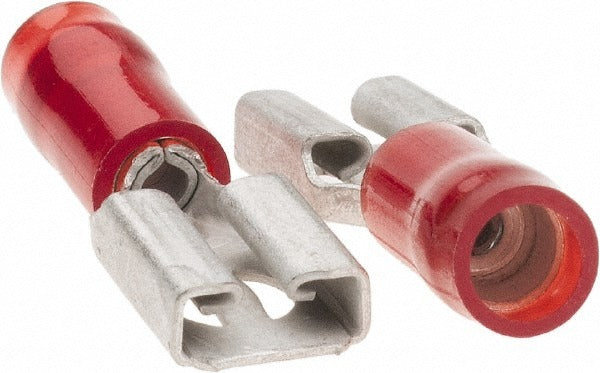

Value Collection BD-18390 Female Wire Disconnect 22-18 Awg

Product Description

The VALUE COLLECTION BD-18390 is a female push-on wire disconnect terminal designed for fast, tool-free electrical connections in control wiring, panel wiring, and general-purpose low-voltage applications. The terminal accepts 22-18 AWG wire and features a 1/4 inch tab width for standard quick-disconnect mating. The nylon insulation is red, allowing easy circuit identification during installation and service. Partial insulation leaves the barrel visible for inspection after crimping. Each package contains 50 terminals. Both CSA Certified and UL Listed, making this terminal suitable for use in code-compliant electrical assemblies.

These female disconnects are used in residential and light commercial control wiring, HVAC low-voltage wiring harnesses, appliance wiring, and electrical panel applications where a removable, push-on connection is required. The 1/4 inch tab width mates with standard male quick-disconnect spade terminals found on relays, contactors, thermostats, and control boards. Electricians and HVAC technicians commonly use these terminals when building or repairing wiring harnesses and control circuits.

Key Features

• Female push-on quick-disconnect design for fast, removable connections without soldering
• Accepts 22-18 AWG wire for compatibility with common control and signal wiring
• 1/4 inch tab width mates with standard spade terminals on relays, contactors, and control boards
• Red nylon partial insulation for easy circuit identification and post-crimp barrel inspection
• CSA Certified and UL Listed for use in code-compliant electrical assemblies
• Sold in a 50-piece package for job-site and bench-stock efficiency

Compatibility

Designed for use with standard 1/4 inch male quick-disconnect spade terminals in general-purpose electrical and control wiring applications accepting 22-18 AWG conductors.

Installation Notes

Installation should be performed by a qualified electrician or HVAC technician in accordance with NEC requirements. De-energize and lock out the circuit before terminating or removing any wire disconnect. Use a proper ratcheting crimping tool sized for 22-18 AWG terminals to ensure a secure, gas-tight crimp. Do not solder over a crimped terminal, as this can create a stress point and lead to conductor fatigue failure.
