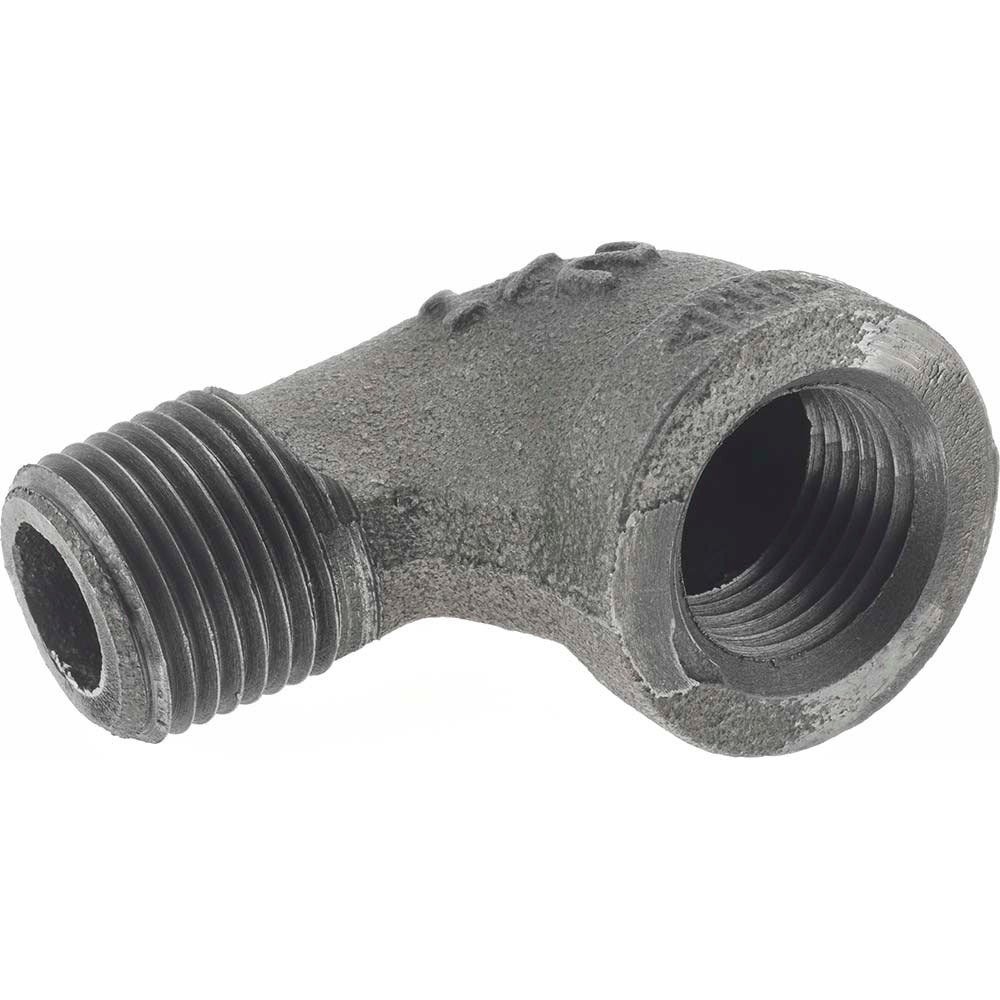

Value Collection B92 15 Black 90 Degree Street Elbow 1/2 in

Product Description

The VALUE COLLECTION B92 15 is a black-finish malleable iron 90-degree street elbow rated for Class 150 service. One end accepts a male threaded pipe while the other provides a female threaded outlet, allowing a direction change directly off a fitting or valve without an additional nipple. At 0.24 pounds, this compact elbow is suited for residential and light commercial gas, air, and water piping where a tight 90-degree turn is required. It carries pressure ratings up to 300 psi and meets multiple international and domestic standards including FM Approved and cULus Listed. Licensed plumbers, pipefitters, and HVAC technicians are the primary installers.

This elbow is used in threaded pipe assemblies for residential and commercial applications involving gas distribution, compressed air, and water supply systems. The 1/2-inch size fits standard schedule pipe and is a common choice for branch connections, appliance drops, and tight-space routing where a street configuration eliminates the need for an extra fitting. Its black finish is standard for gas piping installations.

Key Features

• 90-degree street elbow configuration: one male end, one female threaded end for direct fitting-to-fitting connection
• Malleable iron construction rated to 300 psi liquid and gas pressure
• Class 150 classification for standard-duty threaded piping systems
• Black finish suitable for gas piping applications
• FM Approved and cULus Listed for use in fire-protection and safety-rated installations
• Meets ABNT, EN 10242, GB/T 3287, GB/T 7306.2, and ISO 7/1 standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/2-inch threaded malleable iron pipe systems in gas, water, and compressed air service.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified HVAC technician in accordance with applicable local codes and IFGC or IPC requirements. Shut off the gas or water supply and depressurize the system completely before disassembling any threaded connections. Apply listed thread sealant or PTFE tape appropriate to the service medium before making up threads. Do not over-tighten malleable iron fittings, as the material can crack under excessive torque.
