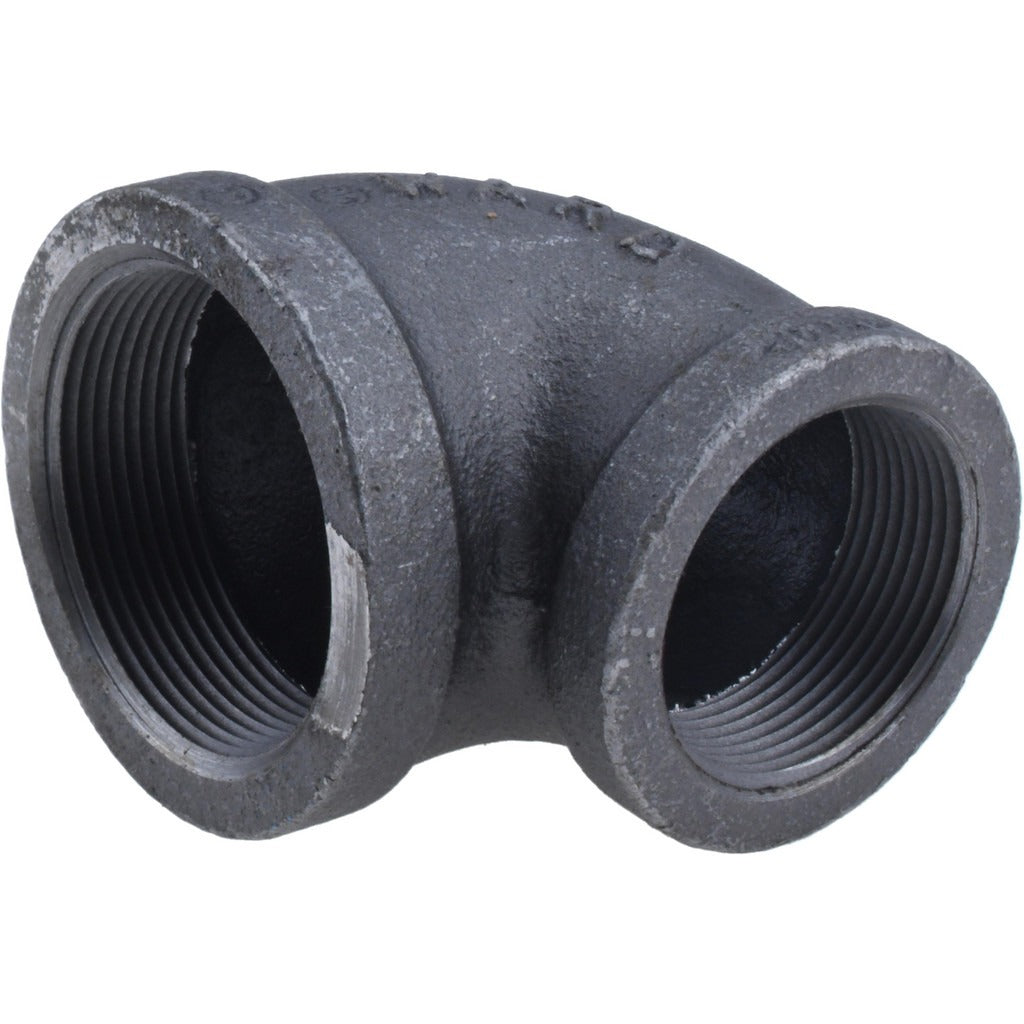

Value Collection B90R 50X40 90 Degree Reducing Elbow

Product Description

The VALUE COLLECTION B90R 50X40 is a threaded 90-degree reducing elbow designed for use in piping systems that require a directional change combined with a reduction in pipe diameter. Manufactured from malleable iron with a black finish, this fitting connects a 2-inch pipe to a 1.5-inch pipe at a right angle. It carries a Class 150 pressure classification with a liquid and gas pressure rating of 300 psi. Licensed plumbers and pipefitters install this type of fitting in both water distribution and gas piping applications where a code-compliant, durable iron fitting is required.

This reducing elbow is suited for residential and light commercial plumbing and gas distribution systems where threaded malleable iron fittings are specified. The fitting meets multiple international and domestic standards, making it appropriate for projects that require documentation of compliance. Its threaded end connections are compatible with standard NPT-threaded pipe and fittings of the corresponding sizes.

Key Features

• 90-degree elbow with a reducing configuration: 2 inches inlet to 1.5 inches outlet
• Malleable iron construction with black finish for durability in piping service
• Class 150 rated with a 300 psi liquid and gas pressure rating
• Threaded end connections for standard NPT pipe assembly
• Meets EN 10242, FM Approved, GB/T 3287, GB/T 7306.2, ISO 7/1, NSF/ANSI 372, NSF/ANSI 61, and cULus Listed standards
• NSF/ANSI 61 and NSF/ANSI 372 certifications indicate suitability for potable water contact

Compatibility

Designed as an OEM-style replacement or new-installation threaded malleable iron reducing elbow for standard NPT piping systems in plumbing and gas distribution applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing and mechanical codes, including IPC and IFGC requirements where applicable. Shut off and depressurize the supply line fully before disassembly or fitting installation. Apply an appropriate thread sealant or PTFE tape to male threads before assembly, and tighten to a proper engagement without over-stressing the fitting. Do not use this fitting beyond its rated pressure classification.
