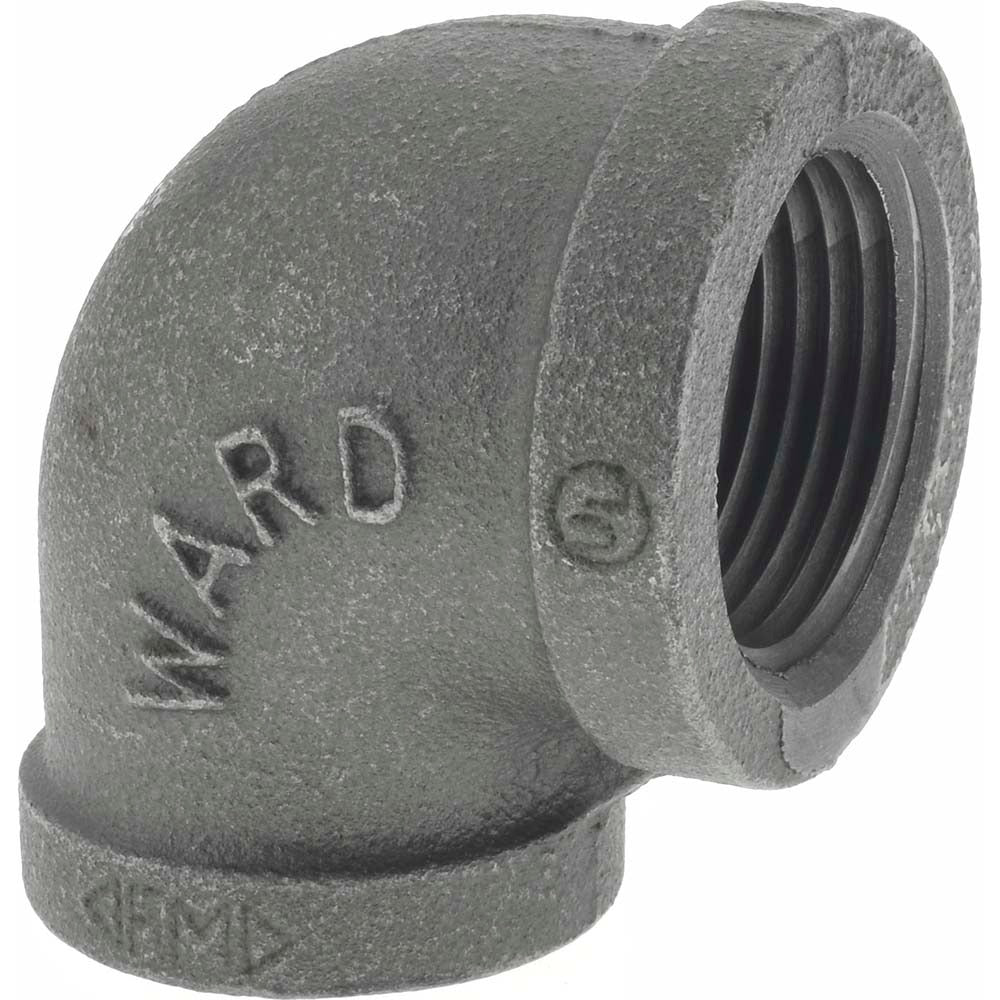

Value Collection B90R 25X20 Reducing 90 Elbow 1x3/4 in

Product Description

The VALUE COLLECTION B90R 25X20 is a malleable iron reducing 90-degree elbow designed for threaded pipe installations in plumbing and mechanical systems. It accepts a 1-inch inlet and reduces to a 3/4-inch outlet, allowing direction changes and pipe size transitions in a single fitting. Rated at Class 150 with a 300 psi working pressure, this elbow handles both liquid and gas service. The black finish is standard for non-potable and gas line applications, though NSF/ANSI 61 and NSF/ANSI 372 certifications also qualify it for potable water use. Licensed plumbers and pipefitters are the typical installers.

This fitting is used in residential and light commercial gas distribution, water supply, and mechanical piping systems where a 90-degree direction change with a simultaneous reduction from 1 inch to 3/4 inch is required. It is suited for new construction rough-in and retrofit work wherever threaded black iron or malleable iron pipe assemblies are specified. The combination of FM approval and cULus listing makes it appropriate for fire protection auxiliary piping and other regulated applications.

Key Features

• Malleable iron construction with black finish for durability in gas and water service
• 300 psi liquid and gas pressure rating
• Class 150 classification per standard threaded fitting specifications
• Complies with EN 10242, GB/T 3287, GB/T 7306.2, and ISO 7/1 dimensional standards
• NSF/ANSI 61 and NSF/ANSI 372 certified for potable water contact and lead content
• FM Approved and cULus Listed for regulated installations

Compatibility

Designed as an OEM-style replacement or new-installation fitting for threaded malleable iron pipe systems using 1-inch by 3/4-inch reducing 90-degree elbows in Class 150 service.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC or IFGC requirements. Shut off and depressurize the line before threading or unthreading any fitting. Use appropriate pipe thread sealant or PTFE tape rated for the service medium. Do not over-tighten threaded connections, as malleable iron fittings can crack under excessive torque.
