Value Collection B90 20 300 90 Degree Elbow 3/4 in

Product Description

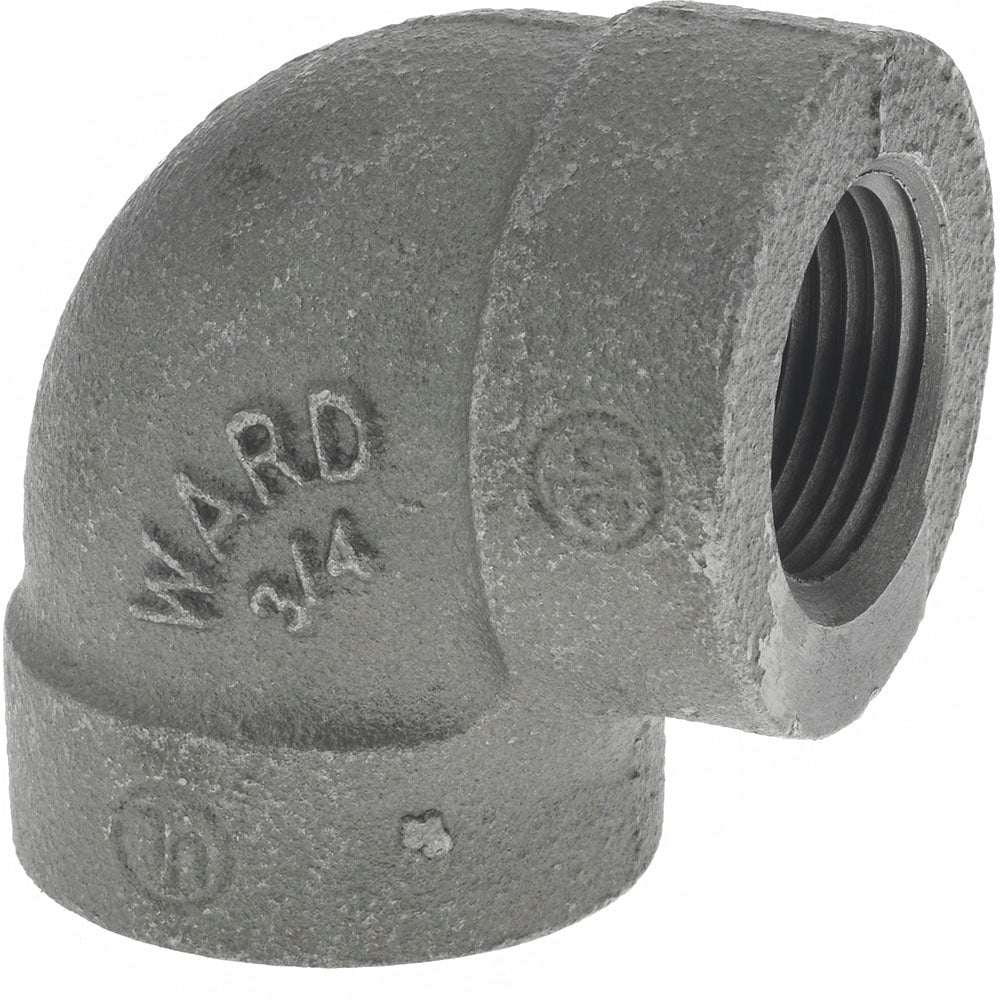

The VALUE COLLECTION B90 20 300# is a 3/4 inch threaded 90 degree elbow fitting manufactured from malleable iron with a black finish. Rated to 1500 psi, this Class 300 fitting is built for demanding liquid and gas piping applications where a reliable directional change is required. The threaded end connections allow for straightforward installation into existing threaded piping systems. Licensed plumbers, pipefitters, and mechanical contractors specify this fitting for both new construction and retrofit work in commercial and industrial environments.

This elbow is suited for 3/4 inch threaded piping systems carrying liquids or gases at elevated pressures. Its Class 300 rating makes it appropriate for higher-pressure applications beyond the typical Class 150 range. The black malleable iron construction performs well in fire protection, gas distribution, and general mechanical piping layouts. It carries NSF/ANSI 61 and NSF/ANSI 372 certifications, confirming suitability for potable water contact where required by local codes.

Key Features

• 1500 psi liquid and gas pressure rating
• Class 300 malleable iron construction for higher-pressure service
• 3/4 inch threaded end connections for standard pipe thread engagement
• Black finish for corrosion resistance in typical piping environments
• NSF/ANSI 61 and NSF/ANSI 372 certified for potable water applications
• Multiple certifications: ABNT, EN 10242, FM Approved, GB/T 3287, GB/T 7306.2, ISO 7/1, cULus Listed

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4 inch threaded malleable iron piping systems rated to Class 300 service, including fire protection, gas, and general mechanical piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC, IFGC, or NFPA codes for the intended service. Shut off and depressurize the piping system completely before removing any existing fitting or making new connections. Apply an appropriate thread sealant or PTFE tape to male threads before assembly, following the sealant manufacturer instructions for the specific fluid or gas being piped. Do not overtighten threaded connections, as malleable iron threads can crack under excessive torque.
