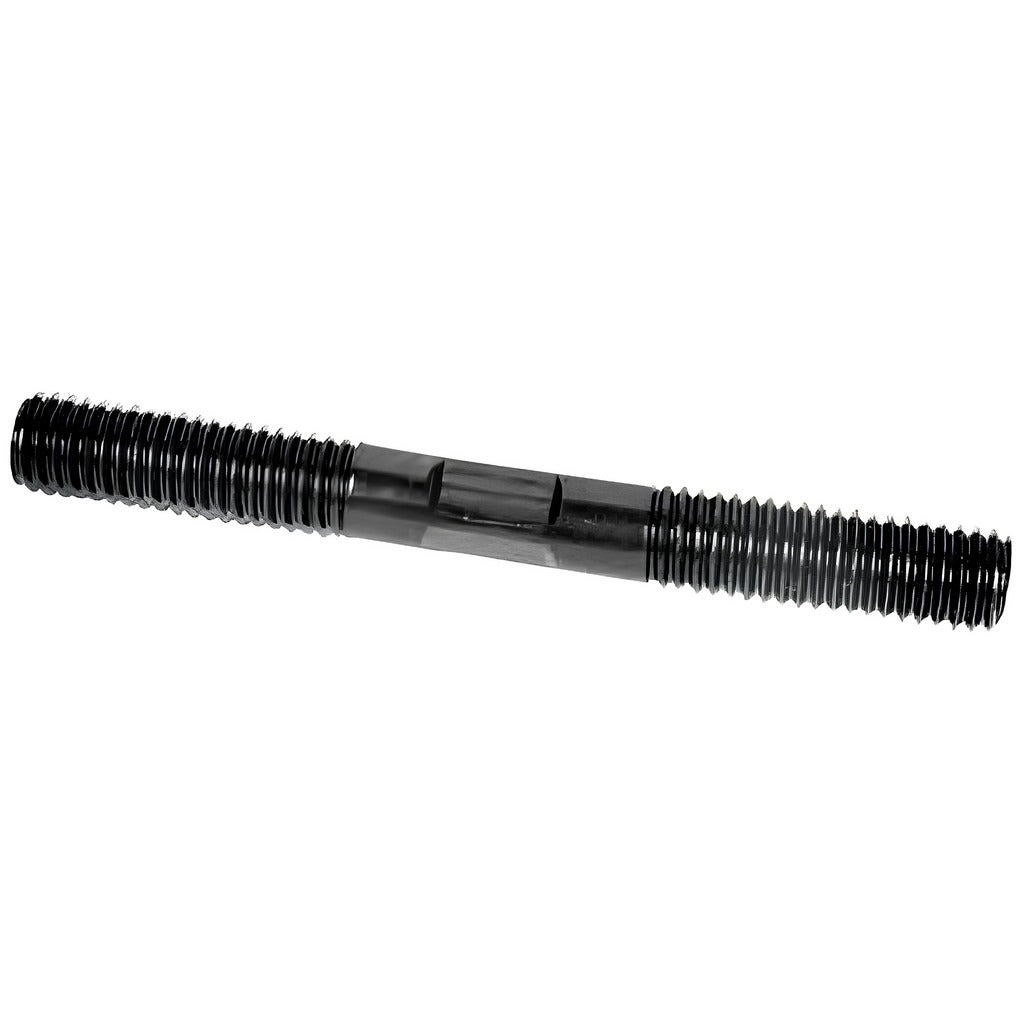

Value Collection B7S100C1000 Fully Threaded Stud 1-8

Product Description

The VALUE COLLECTION B7S100C1000 is a fully threaded stud designed for heavy-duty bolted connections in industrial, mechanical, and structural applications. The stud measures 10 inches in overall length with a 1-8 UNC thread form running the full length of the shank. Manufactured from Grade B7 alloy steel in an uncoated finish, it meets Thread Fit Class 2A tolerances, which are standard for general-purpose fastener assemblies. Machinists, millwrights, pipefitters, and maintenance mechanics commonly install this type of fastener where a bolt-and-nut connection is not practical or where double-nut torquing is required.

This fully threaded stud is suited for use in flanged pipe assemblies, pressure vessel connections, pump mounts, and similar industrial installations where Grade B7 alloy steel is specified by engineering or code. The 1-8 thread pitch and 10-inch length make it appropriate for applications requiring deep thread engagement on both ends. No partial-thread shank limits clamping flexibility, so it can be cut to length in the field when needed.

Key Features

• Full 10-inch threaded length with 1-8 UNC thread — no unthreaded shank section
• Grade B7 alloy steel construction for elevated strength and temperature resistance
• Thread Fit Class 2A for standard general-purpose nut compatibility
• Uncoated finish — suitable for field coating, plating, or use as-is in dry environments
• Weighs 1.86 pounds — sized for structural and pressure-system fastening work

Compatibility

Designed as a general-purpose fully threaded stud for use with 1-8 UNC nuts and couplings in industrial bolting, flanged connections, and mechanical assemblies where Grade B7 alloy steel is required.

Installation Notes

Installation is typically performed by millwrights, pipefitters, or maintenance mechanics using standard wrenches or stud-driver sockets. Always confirm that mating nuts and threaded holes are rated for 1-8 UNC thread and are compatible with Grade B7 material requirements. Degrease all threads and inspect for damage before assembly. Follow applicable torque specifications from the engineer of record or the relevant code standard for the application.
