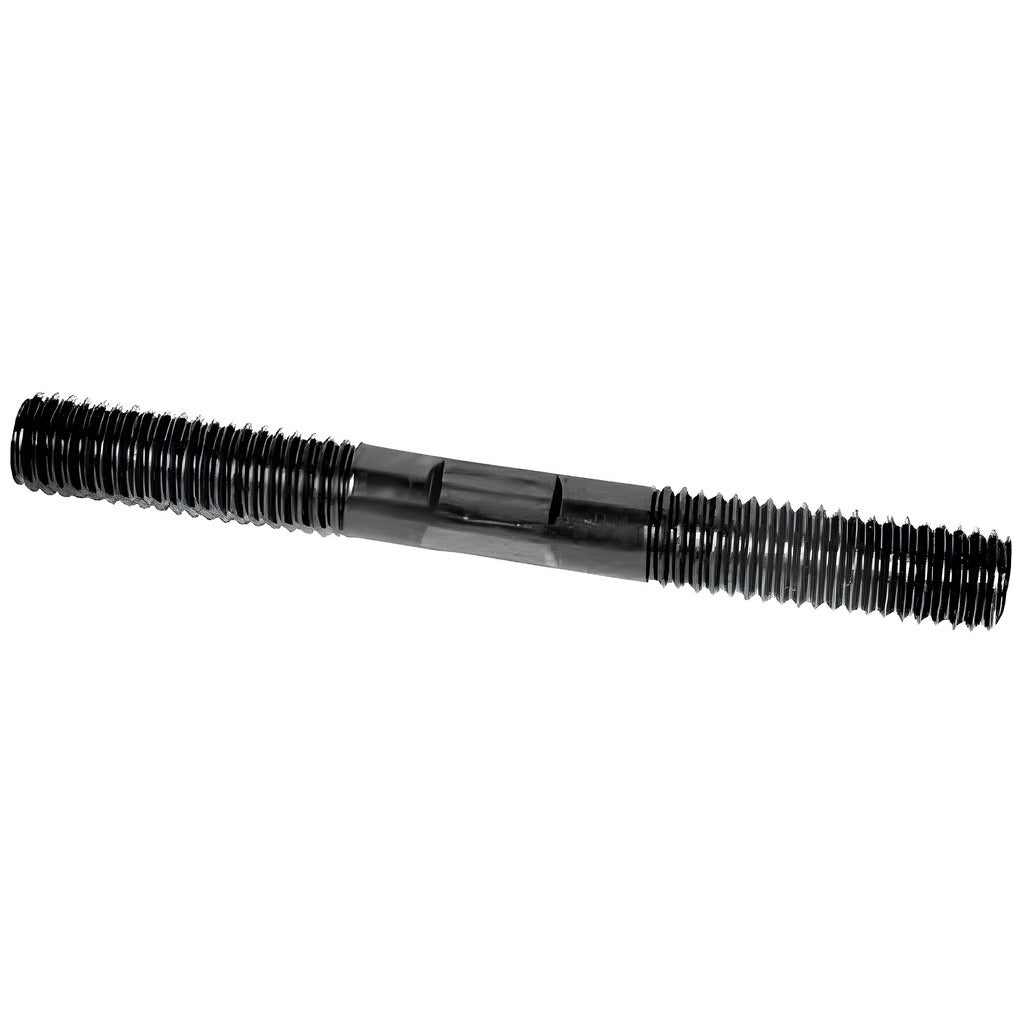

Value Collection B7S075C700 Threaded Stud 3/4-10 7in B7

Product Description

The VALUE COLLECTION B7S075C700 is a fully threaded stud with a 3/4-10 UNC thread form and an overall length of 7 inches. Manufactured from Grade B7 alloy steel in an uncoated finish, this stud carries a Class 2A thread fit tolerance, indicating a standard external thread allowance suitable for general industrial and mechanical fastening applications. The full-thread design means the thread runs the entire 7-inch length with no unthreaded shank, providing maximum engagement flexibility when fastening into nuts or tapped components. Machinists, millwrights, pipefitters, and maintenance technicians install these studs in structural, equipment, and piping assemblies where a bolt head is not appropriate or accessible.

Grade B7 alloy steel studs are a widely used fastener in industrial and heavy mechanical applications, including equipment mounting, flanged pipe connections, pressure vessel assemblies, and machinery bases. The 3/4-10 thread size is a coarse-thread designation suited for applications requiring higher torque transfer or use in materials prone to thread stripping. The uncoated finish is appropriate for dry indoor installations or applications where a field-applied coating or lubrication will be used on the fastener prior to assembly.

Key Features

• Full-length 7-inch thread provides maximum nut positioning flexibility along the entire stud
• Grade B7 alloy steel construction delivers high tensile strength for demanding mechanical and industrial installations
• 3/4-10 UNC coarse thread is compatible with standard 3/4-10 hex nuts and threaded inserts
• Class 2A thread fit ensures consistent dimensional tolerance for reliable assembly
• Uncoated finish suits applications where the installer applies thread lubricant or anti-seize compound at installation

Compatibility

Designed as a standard 3/4-10 fully threaded stud for use with any 3/4-10 UNC-compatible nuts, couplers, or tapped holes requiring a Grade B7 alloy steel fastener.

Installation Notes

Installation is performed by machinists, millwrights, or maintenance technicians using standard 3/4-inch drive or wrench tooling. Always verify that the receiving threaded component matches the 3/4-10 UNC thread specification before installation. De-energize and lock out all equipment per OSHA lockout/tagout procedures before installing or removing studs in live machinery. Apply an appropriate anti-seize compound or thread lubricant when installing into dissimilar metals or high-temperature environments to prevent galling and facilitate future removal.
