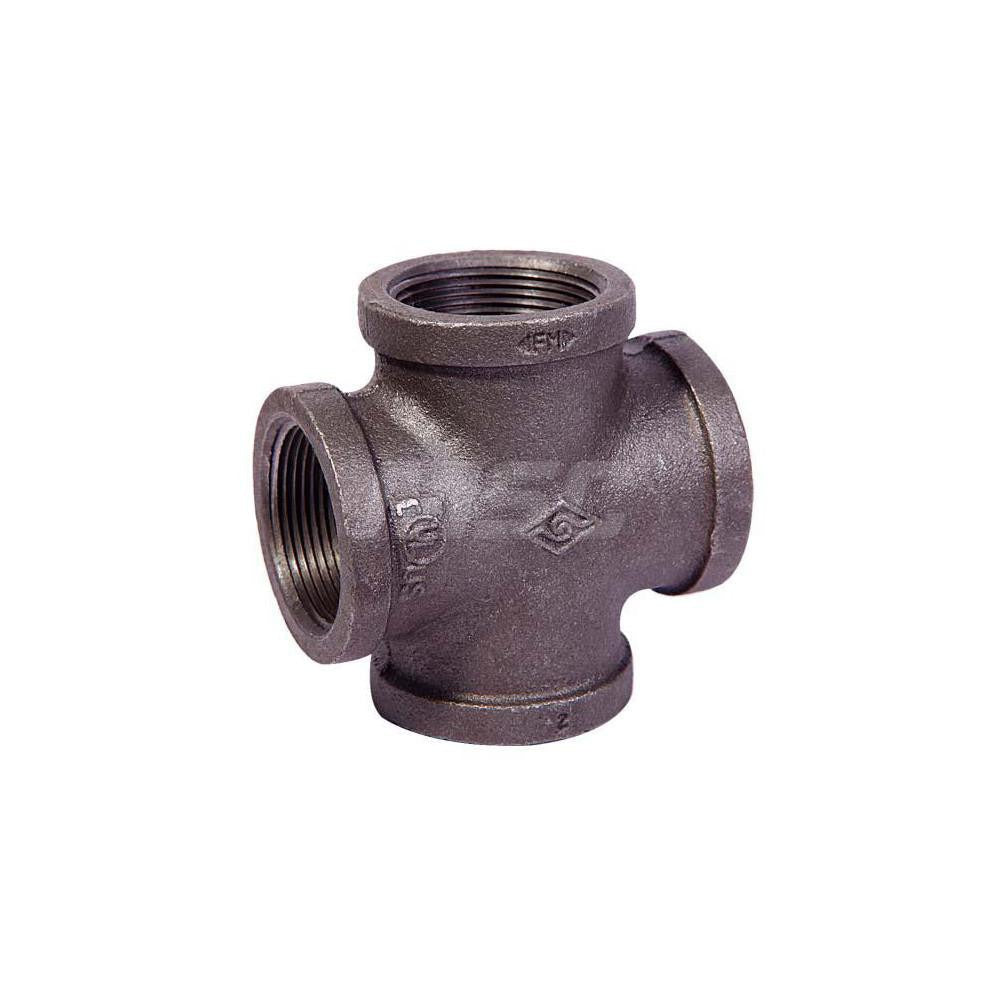

Value Collection B180 80 Malleable Iron Pipe Cross 3 in

Product Description

The VALUE COLLECTION B180 80 is a Class 150 malleable iron black pipe cross designed for joining three branch lines to a main run in a threaded piping system. Rated to 300 psi, this four-outlet cross fitting measures 3 inches in size and uses National Pipe Taper (NPT) threaded end connections throughout. The black finish is standard for gas and industrial piping applications. At 8.05 pounds, it is a heavy-duty fitting built for reliable, long-term service in commercial and industrial pipe runs. Plumbers, pipefitters, and mechanical contractors install this fitting where a branch takeoff in each of four directions is required from a single junction point.

This cross fitting is suited for use in gas distribution, water supply, compressed air, and general industrial piping systems that specify Class 150 malleable iron fittings with NPT threaded connections. It is appropriate for both new construction and retrofit work in commercial and light industrial facilities. The 3-inch size makes it a common choice for main distribution headers requiring balanced four-way flow splits. Always confirm that the service fluid, pressure, and temperature are compatible with malleable iron and Class 150 ratings before installation.

Key Features

• Malleable iron construction rated to 300 psi at Class 150
• 3-inch fitting size with four NPT threaded end connections
• Black finish suitable for gas and industrial piping service
• Meets EN 10242, GB/T 3287, GB/T 7306.2, ISO 7/1 standards; FM Approved and cULus Listed
• Four-way cross configuration for main-run and branch-line connections in a single fitting

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Class 150 malleable iron threaded piping systems using 3-inch NPT connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes, including the International Fuel Gas Code (IFGC) or International Plumbing Code (IPC) as required by the service type. Depressurize and isolate the piping system completely before cutting into any existing line or removing fittings. Apply an appropriate thread sealant or PTFE tape rated for the service fluid to all NPT threads before assembly. Do not overtighten threaded connections, as malleable iron fittings can crack if excessive torque is applied.
